30KW 50KW 100KW 250KW 500KW Hybrid Off Grid Solar Power Energy System

ENERGY STORAGE SYSTEM
* Higher Poewr Output In Hybrid Model                                                                                             * Support Diesel Generator Access

* Pre-Wired                                                                                                                                           * One Stop Shop Prosal

* Easy Installation & Debugging                                                                                                          * Indoor Or Outdoor Options

* Tested Under Multiple Operating Conditions                                                                                    * 30KW To 500KW Solar Storage System

* Convenient Operation & Maintenance

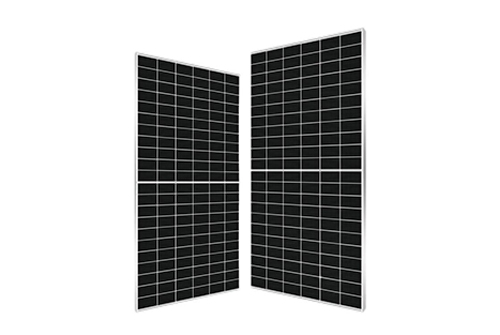

N Type Solar Panel



SUNRANGE ENERGY N Type 720Watt Bifacial Solar Panel



Maximum power (Pmax):720W

Open Circuit Voltage (Voc):49.17V

Short Circuit Current (lsc):18.58A

Voltage at Maximum power (Vmpp):40.81V

Current Maximum Power (lmpp):17.64A

MODULE EFFICIENCY(%): 23.2%

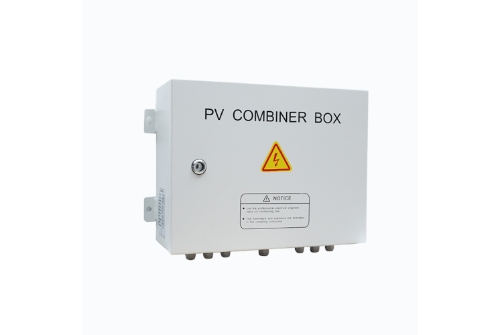

PV Combiner Box



Customized pv combiner box for solar panels connection

Anti-Reverse diode/ DC Circuit Breaker/DC fuse/ Surge protection device Included

Lighting Protection
IP65 Waterproof

Applicable for outdoor PV systems

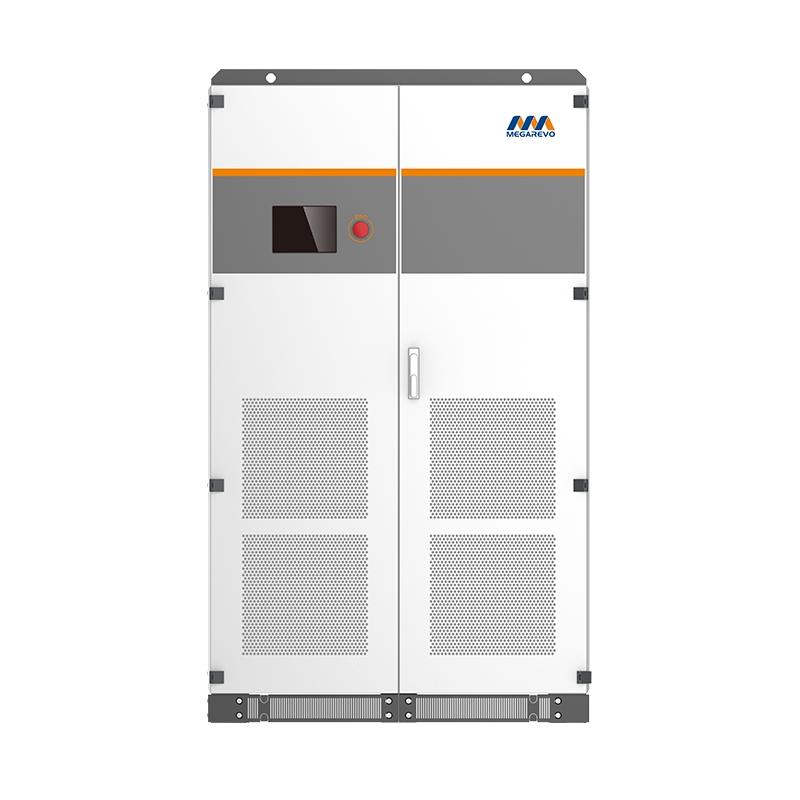

All in one hybrid inverter


Support PV, battery, DG, grid, and load connections in one system
System capacity can be easily expanded
Dynamic power distribution to fulfill load demand
SCR enables seamless switch within 6ms

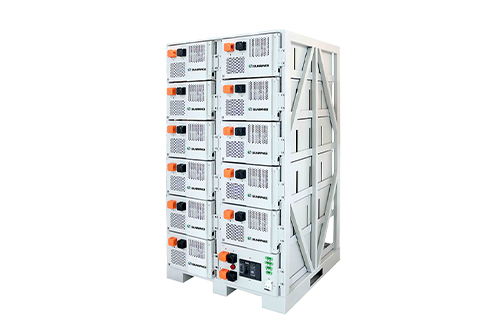

Lithium Battery



14 units of Sunrange 51.2V 314AH -HV Lithium Battery make one cluster 225KWH



Ultra-safe BMS with three-level architecture



Flexible voltage and power combination, suitable for all types of inverters

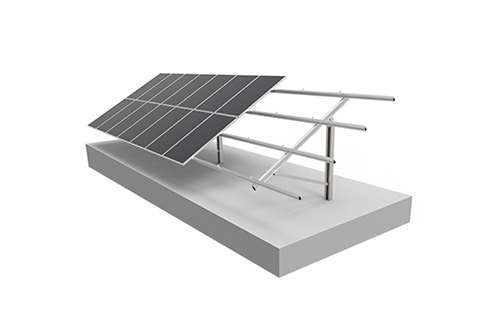

Mounting Brackets



Material Options: Aluminum (lightweight, corrosion-resistant) or steel (high strength, cost-effective)

Types: Fixed-tilt, adjustable, or tracking systems for maximum efficiency

Weather Resistance: Engineered to withstand wind, snow, and seismic loads

Easy Installation: Modular designs for quick assembly and flexibility

Ground/Roof Adaptability: Suitable for diverse terrains and rooftops

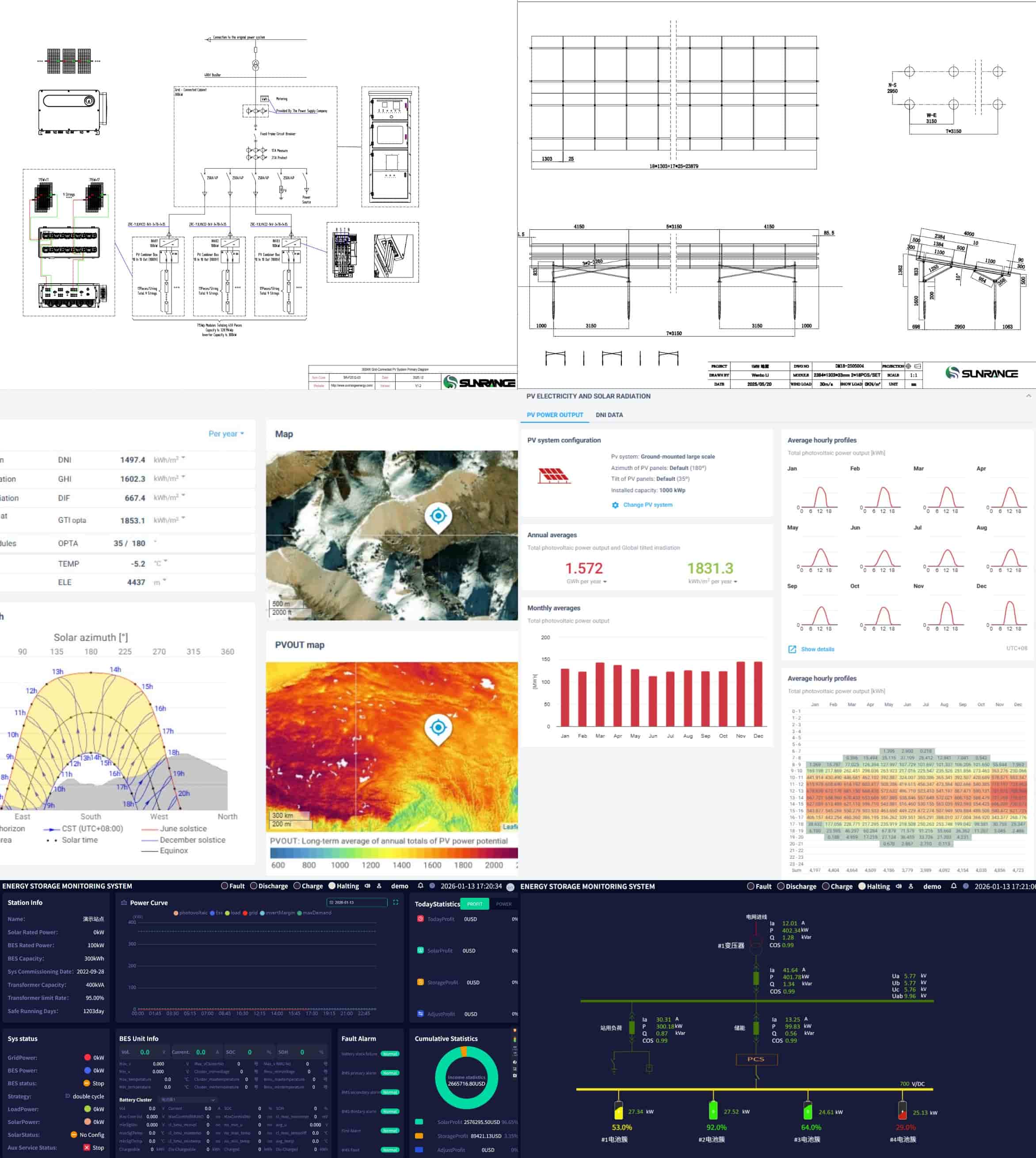

Technical Support

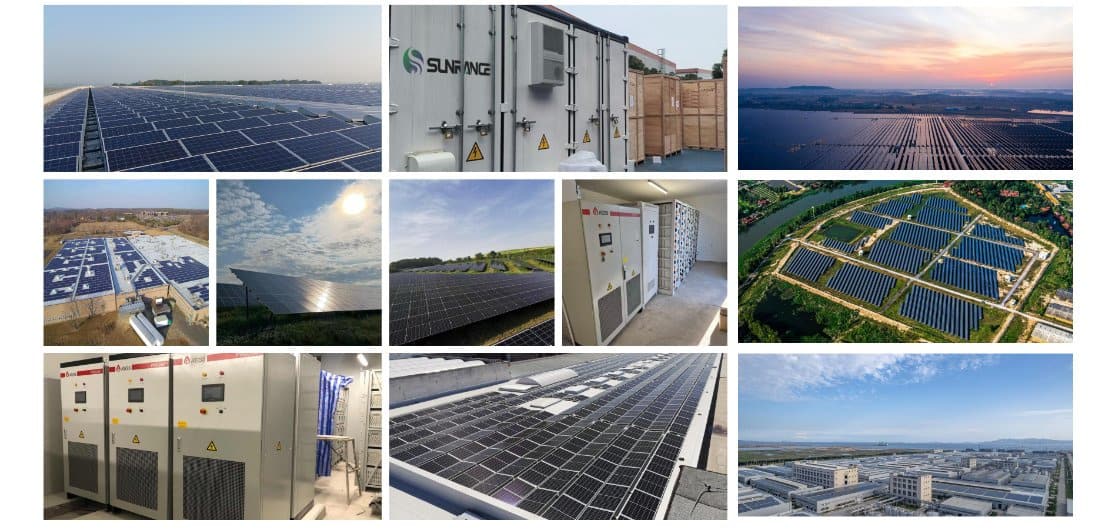

Project Case

FAQ

1. What applications are ideal for a 30kW–500kW hybrid off-grid solar power system?

This system is perfect for industrial sites, remote commercial facilities, microgrids, and renewable energy projects, providing reliable solar power with battery storage even in areas without grid access.

2. How does this hybrid off-grid system improve energy reliability?

By combining solar panels, inverters, and energy storage, the system ensures continuous power supply during peak demand or grid outages, improving operational stability for businesses and industrial users.

3. What components are included in the hybrid off-grid solar energy system?

The system includes high-efficiency solar panels, hybrid inverters, lithium battery packs, mounting structures, and monitoring systems, offering safe, efficient, and easy-to-manage energy storage.

4. Why should businesses invest in a hybrid off-grid solar power system?

This 30kW–500kW hybrid system allows businesses to reduce electricity costs, maximize renewable energy utilization, and ensure energy independence, delivering a long-term, scalable, and high-ROI solution.

5. Can the hybrid system be expanded or upgraded in the future?

Absolutely. The modular hybrid design allows seamless capacity expansion and integration with additional battery storage or solar modules, making it ideal for phased project development.

6. What financial benefits can investors expect from this hybrid off-grid solar system?

By reducing peak electricity costs, improving renewable energy utilization, and ensuring reliable off-grid power, this system offers predictable returns, lower operational expenses, and long-term investment value.
