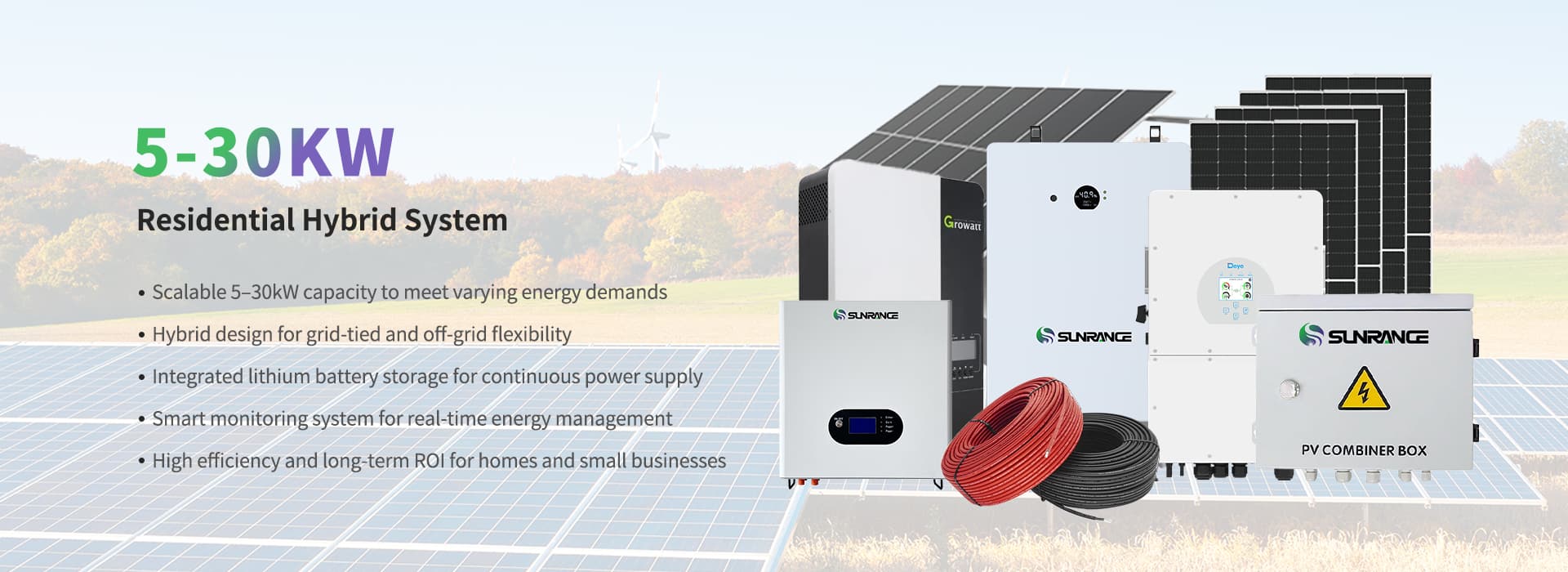

Scalable 5–30kW Hybrid Solar & Energy Storage System for Homes and Small Businesses
Designed for both grid-tied and off-grid applications, this hybrid solar system ensures stable power supply during peak hours or grid interruptions, making it ideal for residential rooftops, offices, retail shops, and small industrial facilities. Its modular design allows easy expansion from 5kW up to 30kW, offering a future-proof solution that grows with your energy needs.
Model No.: :
SR-30KW-HYMax. Power: :
5-30KWOutput Voltage: :
Single Phase/Three Phase 50/60HzBattery Capacity: :
5KWH-100KWH (Customized)Installation Application: :
Roof/GroundWarranty: :
10 Years
Never Fear a Blackout or a Power Bill Again
Welcome to true energy independence. The SunRange Scalable Hybrid System is more than just solar panels—it’s an intelligent, integrated power plant for your home or business. Generate, store, and manage your own clean electricity 24/7. Reduce your grid dependence by up to 90%, protect your family or operations from blackouts, and lock in low energy costs for decades. This is the future of power, available today.
Performance Parameter
| Model. No. | SR-5KW-HY | SR-10KW-HY | SR-15KW-HY | SR-20KW-HY | SR-30KW-HY | |
| System Parameter | AC Rated Power | 5KW | 10KW | 15KW | 20KW | 30KW |
| Grid Voltage | 220/230VAC | 380/400VAC | ||||
| Rated grid frequency | 50/60HZ | |||||
| Max. Output (KVA) | 5.5 | 11 | 16.5 | 22 | 33 | |
| Solar Panel | Quantity | 7PCS | 14PCS | 21PCS | 35PCS | 42PCS |
| Power | 720W | |||||
| Power in total | 5.04KW | 10.08KW | 15.12KW | 25.2KW | 30.24KW | |
| Hybrid Inverter | Quantity | 1PC | 1PC | 1PC | 1PC | 1PC |
| Rated Power (KW) | 5KW | 10KW | 15KW | 20KW | 30KW | |
| MPPT Voltage | 150-425VDC | 250-850VDC | ||||
| LiFePO4 Lithium Battery | Battery Bank Capacity | 10KWH | 20KWH | 30KWH | 40KWH | 60KWH |
| Monitoring Device (Optional) | 1PC | 1PC | 1PC | 1PC | 1PC | 1PC |
| PV cable 1*4MM2 | 200M | 400M | 600M | 1000M | 1600M | 3500M |
| MC4 Connector | 10Pairs | 10Pairs | 20Pairs | 30Pairs | 50Pairs | 100Pairs |
| Solar Installation Tool | 1Set | 1Set | 1Set | 1Set | 1Set | 1Set |
| Mounting Structure (Optional) | 1Set | 1Set | 1Set | 1Set | 1Set | 1Set |
product introduction

N Type Solar Panel
SUNRANGE ENERGY N Type 720Watt Bifacial Solar Panel
Maximum power (Pmax):720W
Open Circuit Voltage (Voc):49.17V
Short Circuit Current (lsc):18.58A
Voltage at Maximum power (Vmpp):40.81V
Current Maximum Power (lmpp):17.64A
MODULE EFFICIENCY(%): 23.2%

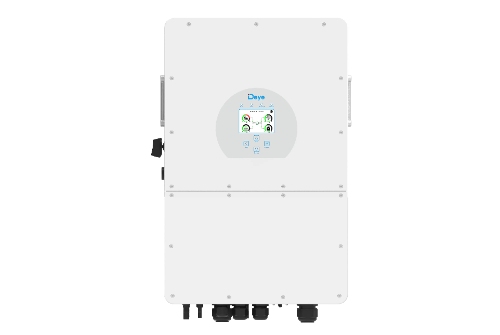

All in one hybrid inverter
Support PV, battery, DG, grid, and load connections in one system
System capacity can be easily expanded
Dynamic power distribution to fulfill load demand

Lithium Battery
14 units of Sunrange 51.2V 314AH -HV Lithium Battery make one cluster 225KWH
Ultra-safe BMS with three-level architecture
Flexible voltage and power combination, suitable for all types of inverters

Mounting Brackets
Material Options: Aluminum (lightweight, corrosion-resistant) or steel (high strength, cost-effective)
Types: Fixed-tilt, adjustable, or tracking systems for maximum efficiency
Weather Resistance: Engineered to withstand wind, snow, and seismic loads
Easy Installation: Modular designs for quick assembly and flexibility
Ground/Roof Adaptability: Suitable for diverse terrains and rooftops

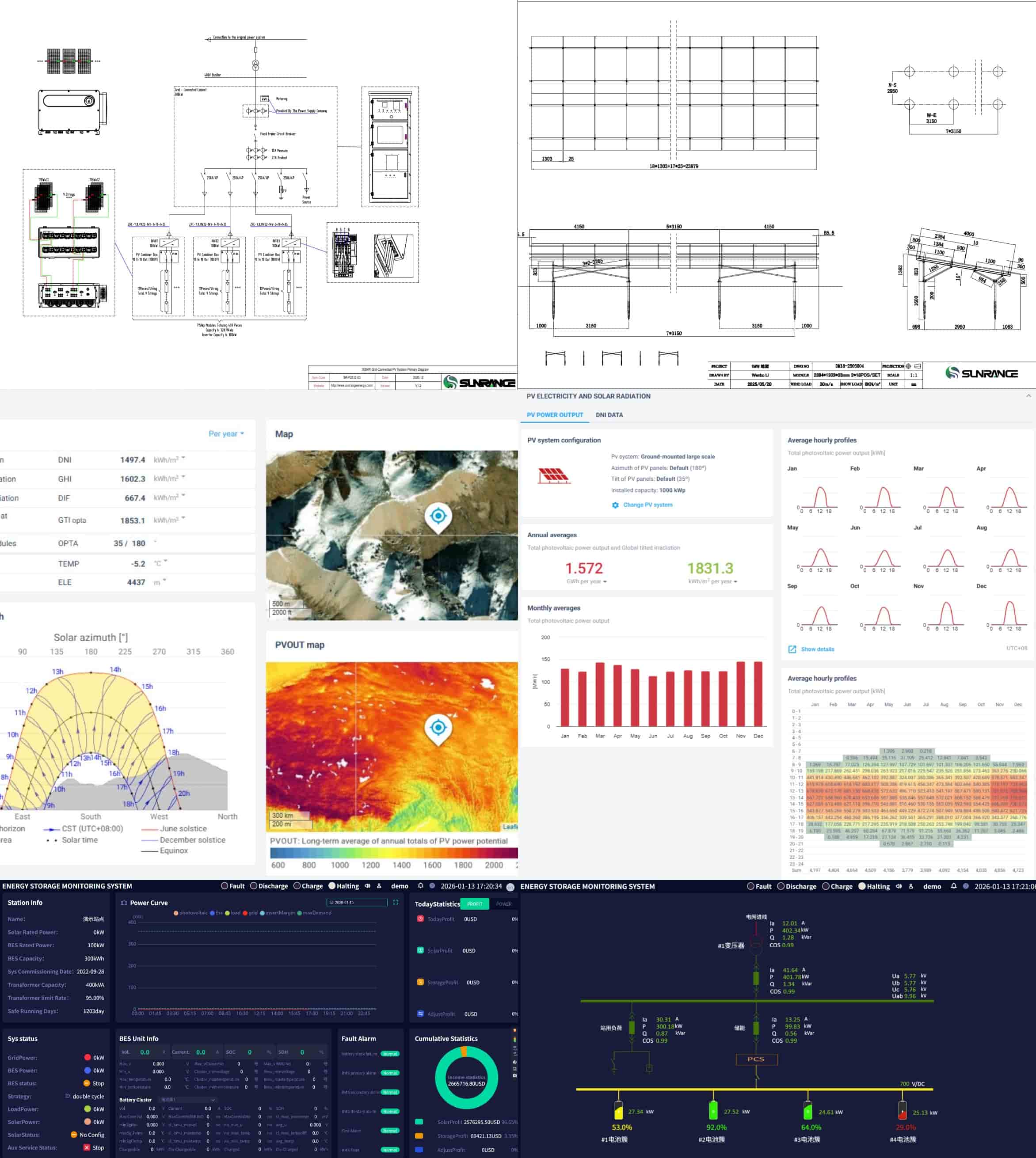

Technical Support

Packaging & Shipping

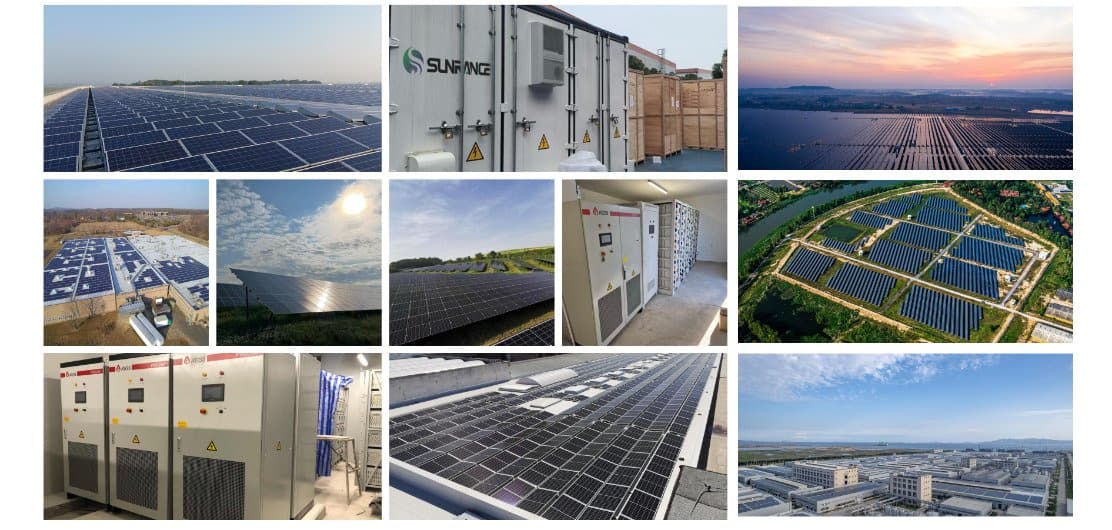

Project Case

FAQ
1. What makes this 5–30kW hybrid solar system different from traditional solar systems?
Unlike standard grid-tied systems, this hybrid solar & energy storage system combines solar power, lithium batteries, and smart energy management, ensuring stable electricity even during grid outages while maximizing self-consumption and long-term savings.
2. Is this system suitable for both homes and small businesses?
Yes. The system is specifically designed for residential users and small commercial applications, such as homes, offices, retail stores, workshops, and small factories, providing scalable power from 5kW to 30kW.
3. Can I expand the system capacity in the future?
Absolutely. Its modular and scalable design allows you to start at 5kW and easily expand up to 30kW as your energy demand grows—no system replacement required.
4. How does the energy storage improve power reliability?
The integrated lithium battery storage stores excess solar energy during the day and supplies power at night or during blackouts, ensuring uninterrupted electricity and enhanced energy independence.
5. Does the system work during power outages?
Yes. In case of grid failure, the hybrid system automatically switches to battery and solar power, keeping critical loads running without interruption—ideal for areas with unstable grids.
6. How much can I save on electricity bills?
By maximizing solar self-consumption and reducing reliance on the grid, users typically achieve significant reductions in electricity costs, with faster ROI compared to traditional on-grid solar systems.
7. Why choose Sunrange as your solar & energy storage partner?
As a professional lithium battery manufacturer and exporter, Sunrange delivers factory-direct pricing, strict quality control, global certifications, and reliable long-term support—helping customers invest with confidence.
