500KW 1 MW 2 MW 3MW 5MW C&l Energy Storage System System

The system adopts a modular design, covering power ranges from 500KW to 5MW, which can be flexibly configured and expanded according to different electricity demands.

In terms of technical parameters, the system features an AC output voltage of 380/400V and a rated frequency of 50/60Hz. It can operate stably in harsh environments with a working temperature range of -35℃~50℃ (derating above 40℃), a working humidity range of 0~95% (no condensation).

The system boasts prominent advantages: energy independence (off-grid design, no reliance on public power grids, suitable for areas without grid coverage or with unstable grids), intelligent management (hybrid inverters can automatically switch power sources to optimize energy utilization), remote monitoring (supporting Wifi/Lan/GPRS for real-time operation status monitoring), and wide applicability (suitable for commercial, industrial, outdoor, residential and other scenarios).

N Type Solar Panel



SUNRANGE ENERGY N Type 720Watt Bifacial Solar Panel



Maximum power (Pmax):720W

Open Circuit Voltage (Voc):49.17V

Short Circuit Current (lsc):18.58A

Voltage at Maximum power (Vmpp):40.81V

Current Maximum Power (lmpp):17.64A

MODULE EFFICIENCY(%): 23.2%

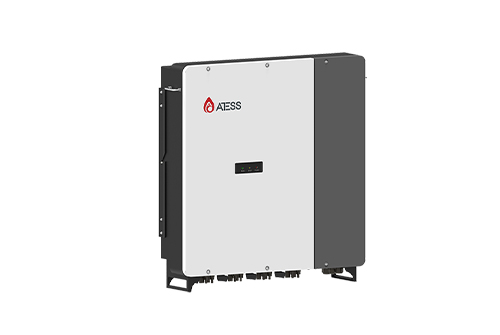

Solar Charge Controller-SMC200



8 MPPTs Flexible for solar array design



Multiple units parallelable, used together with ATESS PCS and Bypass for large scale solar projects.

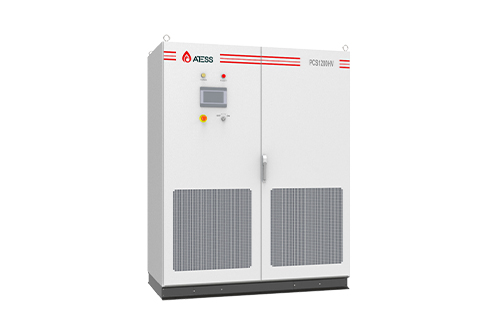

500KW-1500KW PCS



Support Remote Control of DG, Max. 8 units in parallel for on & off grid operation



Large-scale AC coupling scenario: 1500 kw inverter is suitable for large-scale industrial and commercial energy storage and regional-level grid support projects



Large-scale DC coupling scenario: In remote areas without power grids, 1500 kw inverter can efficiently integrate solar power generation and energy storage systems to ensure the power supply for daily life and production.

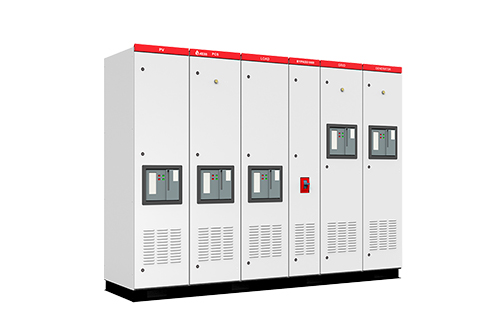

Bypass 500/630/1000





Import/export control

Seamless on/off grid transfer within 10ms

Flexible management

DG connection supported

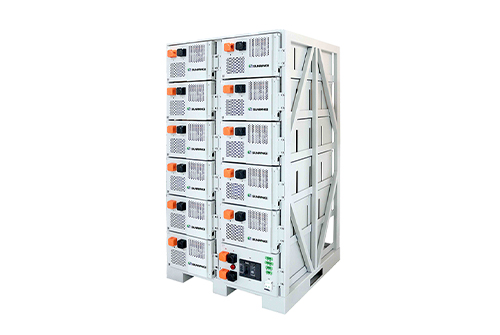

Lithium Battery



14 units of Sunrange 51.2V 314AH -HV Lithium Battery make one cluster 225KWH



Ultra-safe BMS with three-level architecture



Flexible voltage and power combination, suitable for all types of inverters

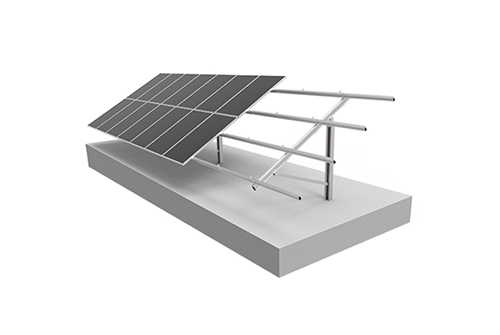

Mounting Brackets



Material Options: Aluminum (lightweight, corrosion-resistant) or steel (high strength, cost-effective)

Types: Fixed-tilt, adjustable, or tracking systems for maximum efficiency

Weather Resistance: Engineered to withstand wind, snow, and seismic loads

Easy Installation: Modular designs for quick assembly and flexibility

Ground/Roof Adaptability: Suitable for diverse terrains and rooftops

Technical Support

Project Case

FAQ

1. Comprehensive One-Stop Energy Storage Solution

We provide professional, all-in-one commercial & industrial energy storage system (ESS) solutions.

2. Customizable System Design (5KW–5MW)

We provide customized solutions based on project requirements.

3. Integrated Modular System Architecture

The system integrates high-voltage lithium battery packs, BMS, active battery balancing, PCS (inverter), MPPT, and EMS for smart energy management.

4. Advanced LFP Battery Technology (LiFePO₄)

Safe and reliable, with over 6,000 cycles at 80% DoD and a lifespan of more than 10 years.

5. Ideal for a Wide Range of Applications

Designed for hotels, schools, factories, churches, broadcasting stations, and large villas.

6. Professional Installation & Commissioning Team

Backed by a team of experienced engineers for on-site installation, debugging, and technical support.
