Our 12V lead acid batteries are highly versatile. They are ideal for a wide range of uses including solar lighting and small photovoltaic (PV) systems, uninterruptible power supplies (UPS), security and fire alarm systems, electric wheelchairs and scooters, and general purpose backup power.
Brand :
Sunrange/OEMWarranty :
5 yearsNominal Voltage :
12VBattery Capacity :
100/150/200Certification & Safety Standard :
CE,TUV,ISO
Performance Parameter
| Technology Data | |||
| Model Type | 12V100AH | 12V150AH | 12V200AH |
| Reted Voltage | 12V | 12V | 12V |
| Capacity(10hr,1.80V/Cell) | 100Ah | 150Ah | 200Ah |
| Weight | 30.8kg | 42.5kg | 56.7kg |
| Max.Discharge Current | 30I 10A(3min) | 30I 10A(3min) | 30I 10A(3min) |
| Max.Charge Current | ≤0.25C 10 | ≤0.25C 10 | ≤0.25C 10 |
| Self-Discharge(25 | 3% month | 3% month | 3% month |
| Recommended Using Temperature | 15-25 | 15-25 | 15-25 |
| Cover Material | ABS | ABS | ABS |
| Using Temperature | Discharge:-45-50;Charge:-20-45;Storage:-30-40 | Discharge:-45-50;Charge:-20-45;Storage:-30-40 | Discharge:-45-50;Charge:-20-45;Storage:-30-40 |
| Charge Voltage(25 | Float Charge:13.4V-13.7V;Average Charge:14.1V-14.4V | Float Charge:13.4V-13.7V;Average Charge:14.1V-14.4V | Float Charge:13.4V-13.7V;Average Charge:14.1V-14.4V |
| Temperature Compensation Coefficient(25 |
Float Temperature Compensation Coefficient:-3mV/Cell
Equalization Temperature Compensation Coefficient:-4mV/Cell
|
Float Temperature Compensation Coefficient:-3mV/Cell
Equalization Temperature Compensation Coefficient:-4mV/Cell
|
Float Temperature Compensation Coefficient:-3mV/Cell
Equalization Temperature Compensation Coefficient:-4mV/Cell
|
| Cycle Life | 100%DOD,572 times;50%DOD,1422 times;30%DOD 2218times | 100%DOD,572 times;50%DOD,1422 times;30%DOD 2218times | 100%DOD,572 times;50%DOD,1422 times;30%DOD 2218times |
| Capacity Affected by Temperature | 105%@4085%@060%@-20 | 105%@4085%@060%@-20 | 105%@4085%@060%@-20 |
Why Choose Our 12V Lead Acid Battery?
Reliability You Can Count On: Our batteries are engineered for consistent power and long life, with low self-discharge and excellent recovery, making them perfect for backup, security, and solar applications.
Superior Value: Benefit from a longer cycle life that means fewer replacements and lower long-term costs—the ideal balance of upfront affordability and enduring performance.
Expertise You Can Trust: Although we are leaders in advanced lithium technology, this expertise elevates our lead acid line. You get a battery built with the rigorous quality control and deep technical knowledge of a true energy storage innovator.
Versatility for Global Use: Our 12V batteries are ready for a wide range of applications, from small solar systems and UPS backups to electric mobility and security alarms.
A Partnership Beyond the Product: When you choose Sunrange, you gain a dedicated partner committed to quality, safety, and customer satisfaction, with the experience to support your success.
Ready to power your project? Contact us today for a quote.
Compatible Inverters List

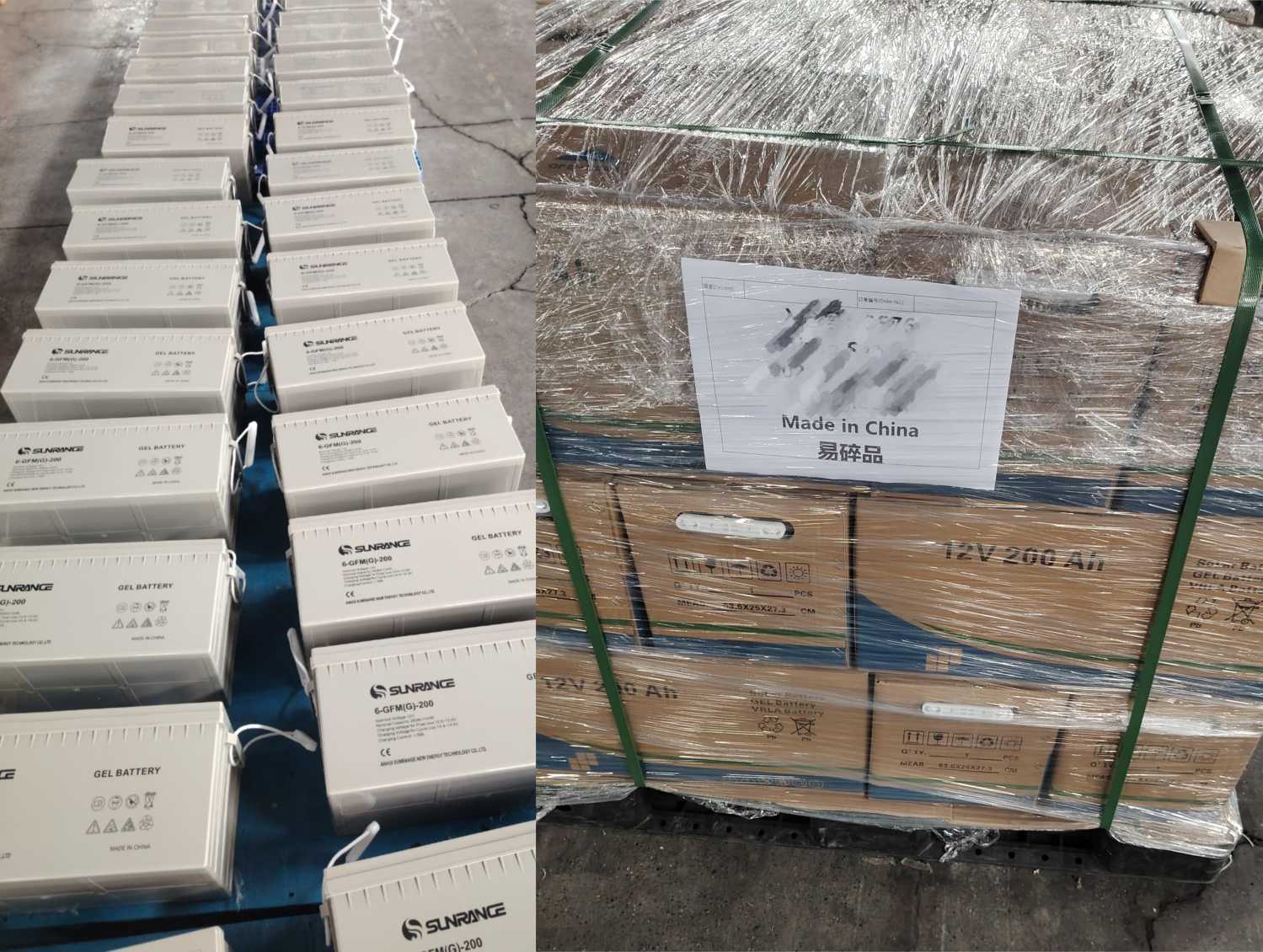

Packaging & Shipping
FAQ
1. What specific applications is your 12V lead acid battery best suited for?
Our 12V lead acid batteries are highly versatile. They are ideal for a wide range of uses including solar lighting and small photovoltaic (PV) systems, uninterruptible power supplies (UPS), security and fire alarm systems, electric wheelchairs and scooters, and general purpose backup power.
2. How does your expertise in lithium batteries benefit your lead acid products?
As a leading lithium battery manufacturer, we apply the same rigorous engineering standards and quality control to our lead acid line. Our deep experience in thermal management and system integration for solar storage ensures you get a reliable lead acid battery built on advanced energy expertise.
3. Are your 12V lead acid batteries a good value option?
Absolutely. They are designed to offer a superior cycle life compared to standard options, which means fewer replacements and lower long-term costs. You get an excellent balance of upfront affordability and dependable, long-lasting performance.
4. Can I use these batteries for an off-grid or entry-level solar system?
Yes, they are an excellent choice for entry-level solar setups, backup power for small systems, and other renewable energy applications where reliable, cost-effective energy storage is needed.
5. Are your 12V lead acid batteries reliable for critical backup systems?
Yes, reliability is a core feature. They are engineered for consistent power delivery with low self-discharge and excellent deep discharge recovery, making them a trustworthy choice for security systems, UPS, and other critical backup applications.
6. What kind of after-sales support or technical advice do you offer?
When you partner with Sunrange Energy, you gain more than a product. We are committed to customer satisfaction and have the experience to support you with technical advice and a reliable supply chain, ensuring you get the right solution for your project.
7. How does the long service life of your battery provide a better return on investment?
Because our batteries are designed to last longer with a superior cycle life, you won't need to replace them as often. This longevity directly translates to lower total ownership costs and a better return on your initial investment over time.
8. Is this product suitable for both residential and commercial projects?
Yes, its versatility makes it suitable for various scales. It works perfectly for small residential needs like home backup or solar lighting, as well as for commercial applications such as large-scale security systems or backup power for equipment.
Our 12V lead acid batteries are highly versatile. They are ideal for a wide range of uses including solar lighting and small photovoltaic (PV) systems, uninterruptible power supplies (UPS), security and fire alarm systems, electric wheelchairs and scooters, and general purpose backup power.
