Home Tongwei

Tongwei 730-750W N-type Half-cell Bifacial Solar Panel

Tongwei 730-750W N-type Half-cell Bifacial Solar Panel

Redefine Your Energy Density: The Future is N-Type & Bifacial

Welcome to the pinnacle of solar innovation.



Model: TWMNF-66HD750
Max Power 750W
Cell Orientation 132[6×22]
Dimension 2384±2×1303±2×33mm
Weight 37.3 kg
Cable Length +400 mm,-200 mm or±1,400 mm;length can be customized
Maximum Static Test Load 5,400 Pa(front)/2,400 Pa(rear)
Packaging(Per pallet)  33 pcs
Packaging 594 pcs per40'HC

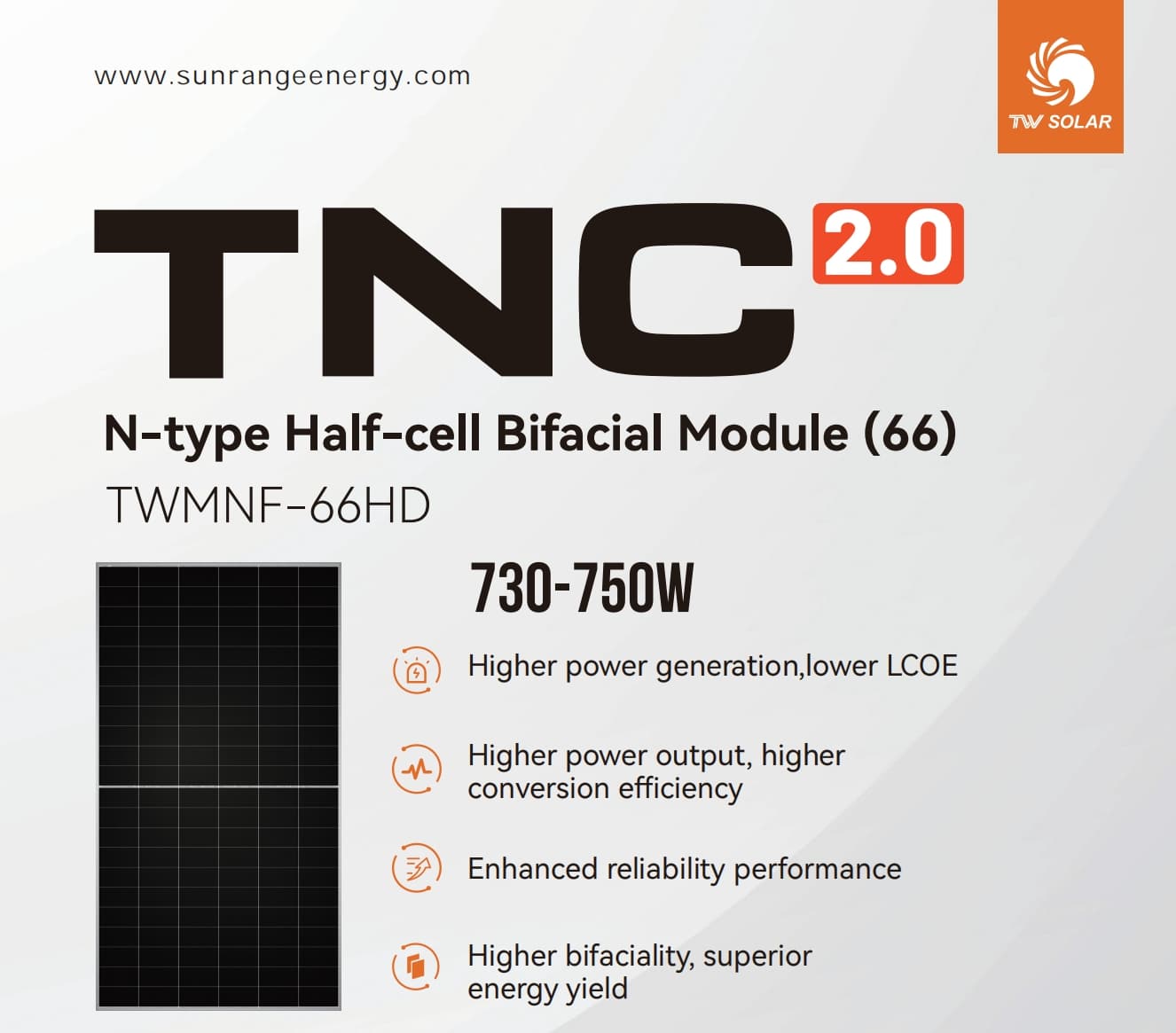

Tongwei 750W Solar Panel

The Tongwei 730-750W N-type Bifacial Solar Panel is engineered for one purpose: to deliver the highest possible energy yield and the lowest levelized cost of energy (LCOE) for your utility-scale or large commercial project. By converging three key technologies—N-type TOPCon cells, bifacial power generation, and half-cell design—this module doesn't just capture sunlight; it captures more value from every square meter of your investment. If your goal is to maximize returns and future-proof your solar asset, this is where the next generation begins.



Performance Parameter

Module type:TWMNF-66HDXXX
Maximum Power:Pmax[W] 730  735  740  745  750
Open Circuit Voltage:Voc[V] 49.55  49.65  49.80  49.95  50.10
Short Circuit Current:Isc[A] 18.68  18.75  18.81  18.87  18.93
Voltage at Maximum Power:Vmp[V] 41.37  41.53  41.69  41.86  42.02
Current at Maximum Power:Imp [A] 17.65  17.70  17.75  17.80  17.85
Module Efficiency:η [%] 23.5  23.7  23.8  24.0  24.1



This module is the cornerstone for projects where performance and profitability are non-negotiable.



Utility-Scale Solar Farms: Achieve the lowest possible LCOE. The combination of high front-side power and bifacial gain maximizes energy yield per hectare, making your project more bankable and competitive.



Large Commercial & Industrial (C&I) Rooftops: Meet ambitious energy goals within limited space. The high wattage reduces the number of panels needed, simplifying design and installation on large warehouses or factory roofs.



Agricultural Solar & Carport Structures: Perfect for installations over reflective surfaces (like gravel or concrete) where bifacial gain is maximized. The robust mechanical strength ensures long-term reliability.



Projects in Harsh Climates: With exceptional load ratings, this panel is built to perform reliably in regions with heavy snowfall or strong winds.



Why This Panel is Your Smartest Commercial Choice

In the competitive landscape of solar energy, incremental gains are not enough. This panel is built for decisive advantage:



Unbeatable Energy Yield with Dual-Side Power: The bifacial design captures direct sunlight on the front and utilizes reflected light (albedo) on the rear. On optimal sites, this can lead to a significant boost in total energy production (up to 30%+), directly increasing your project's revenue.



Superior N-Type TOPCon Cell Technology: N-type cells are the industry's forward path for good reason. They offer higher initial efficiency (up to 24.1%), superior temperature performance, and near-zero Light-Induced Degradation (LID). This means more stable, reliable power output over the system's entire 30+ year lifespan.



Enhanced Durability & Reliability: The robust construction withstands 5,400 Pa of front-side load (snow) and 2,400 Pa of rear-side load (wind), making it suitable for diverse and challenging environments. The half-cell design reduces internal current and resistive losses, improving performance in partial shading and lowering operating temperatures.



Maximized ROI through System Savings: An industry-leading power class of 750W translates directly into fewer panels, less mounting hardware, reduced cabling, and lower installation labor to achieve your target capacity. This dramatic reduction in Balance of System (BoS) costs accelerates your payback period.



Product Packaging Details

Tongwei 735W N-type Bifacial Solar Panel

Partner with Sunrange for Your Energy Future

Choosing Tongwei panels through Sunrange means more than purchasing a product. You gain a strategic partner with deep expertise in the global solar supply chain. We ensure you receive top-tier technology, backed by reliable logistics and technical support to make your project a resounding success.



FAQ

1. What are the biggest financial advantages of this 750W panel for my solar farm?

It directly lowers your project's Levelized Cost of Energy (LCOE) in two key ways: its ultra-high power (up to 750W) means you need fewer panels, reducing installation and material costs. Additionally, its bifacial design captures reflected light, boosting total energy yield by up to 15-30% on suitable sites, generating more revenue from the same land area.



2. What's the real-world benefit of "N-type" cells compared to standard "P-type" panels?

N-type TOPCon cells are the superior next-generation technology. They offer higher module efficiency (up to 24.1%), stronger performance in hot weather (lower power loss), and most importantly, significantly lower power degradation over time. This means your power plant will deliver more energy, year after year, for decades.



3. How does the "half-cell" design improve my system's performance?

The 132 half-cell configuration reduces electrical resistance and internal power losses. This results in higher overall energy output, improved performance when sections of the panel are shaded, and lower operating temperatures, which enhances the panel's long-term reliability and lifespan.



4. How much extra energy can the bifacial feature actually generate?

The additional energy gain ("bifaciality") varies based on your installation site. On surfaces with high reflectivity like light-colored gravel, sand, or concrete, you can expect 10% to 25%+ more annual energy production. This is pure additional yield, making your investment substantially more profitable.



5.Are these panels durable enough for harsh environments like heavy snow or coastal areas?

Absolutely. These panels are built to withstand demanding conditions, certified for a maximum static load of 5,400 Pascals on the front (snow) and 2,400 Pascals on the rear (wind). The N-type cells and robust construction also offer excellent resistance to moisture and corrosion, ensuring long-term durability.



6.Why should I source these Tongwei panels from Sunrange Energy?

As your manufacturer and export partner, Sunrange provides direct access to premium Tier-1 technology, competitive pricing, and full supply chain control. We offer the expertise to customize solutions (like cabling), ensure certified quality, and provide the technical support needed for successful utility-scale project deployment.
