This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine. This inverter can work with or without batteries.
| Model No. : | SPF5000-ES |
| Warranty: | 3 Years |
| Max.Power: | 3KW-5KW |
| Output Voltage: | 230V Single Phase 50Hz |
| Battery Voltage: | 48Vdc |
| Input Voltage: | 120-430 |
| Dimension(mm): | 330×485×135 |
| Weight(kg): | 12 |
Key Features
performance Parameter
| Datasheet | SPF 3500 ES | SPF 5000 ES |
| Batteryvoltage | 48VDC | |
| Battery type | Lithium/Lead-acid | |
| nverter output | ||
| Rated power | 3500VA/3500W | 5000VA/5000W |
| Parallel capability | Yes,6 units maximum | |
| AC voltage regulation (Battery mode) |
230VAC±5%@50/60Hz | |
| Surge power | 7000VA | 10000VA |
| Efficiency (Peak) | 93% | |
| Waveform | Pure sine wave | |
| Transfer time | 10ms typical,20ms Max | |
| Solar charger | ||
| Maximum PV array power | 4500W | 6000W |
| MPPT Range@operating voltage | 120VDC～430VDC | |
| Number of Independent MPP trackers/ strings per MPP'tracker |
1/1 | |
| Max.input current per MPP tracker | 22A | |
| Maximum PV array open circuit voltage |
450VDC | |
| Maximum solar charge current | 80A | 100A |
| AC charger | ||
| Charge current | 60A | 80A |
| ACInput voltage | 230 VAC | |
| Selectable voltage range | 170-280 VAC(For Personal Computers);90-280 VAC(For Home Appliances) | |
| Frequency range | 50Hz/60Hz(Auto sensing) | |
| Physical | ||
| Protection degree | IP20 | |
| Dimension(W/H/D) | 330/485/135mm | 330/485/135mm |
| Net weight | 11.5kg | 12kg |
| Operating environment | ||
| Humidity | 5%to 95%Relative Humidity(Non-condensing) | |
| Altitude | <2000m | |
| Operating temperature | 0℃-55℃ | |
| Storage temperature |
-15℃-60℃ |
|

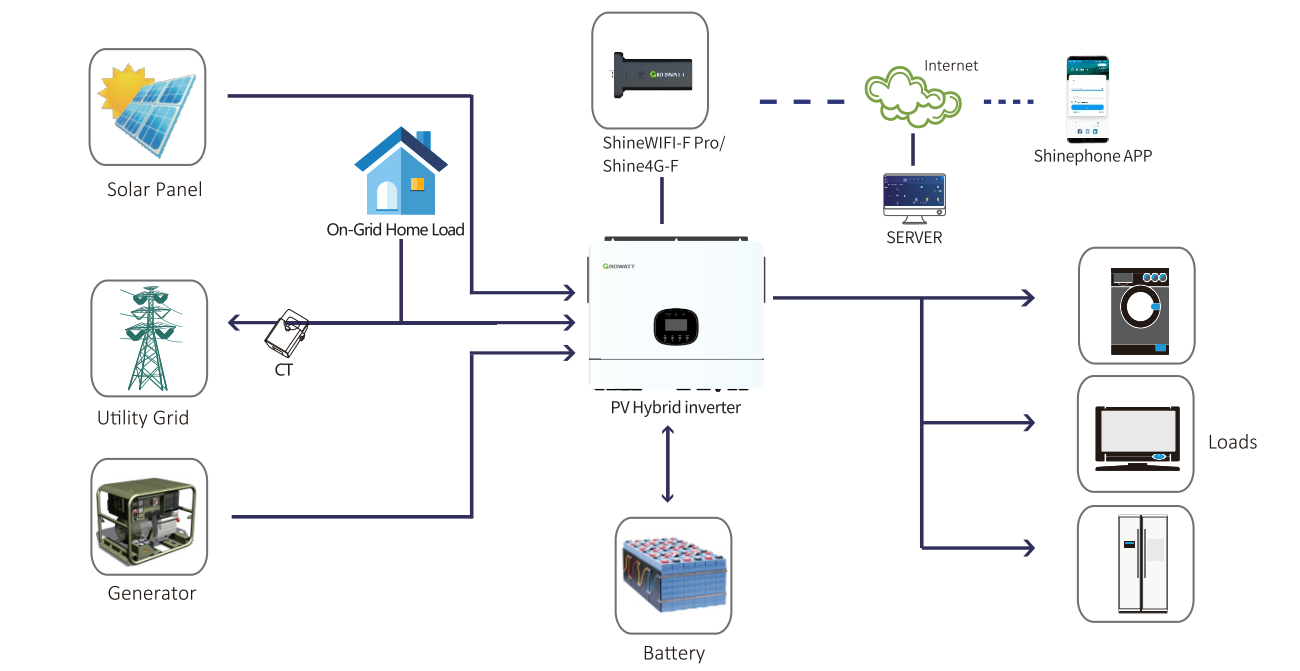

The whole system also need other devices to achieve complete running such as PV modules, generator, orutility grid. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on theinverter, With this device, users can monitor the status of the PV system from the mobile phone or from thewebsite anytime anywhere.

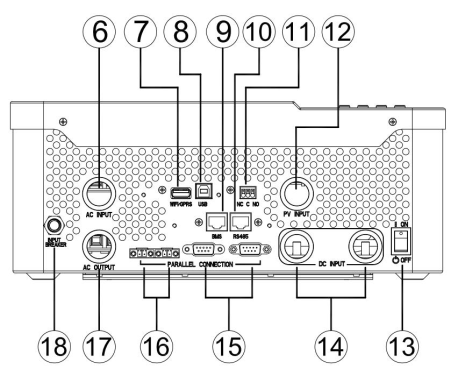

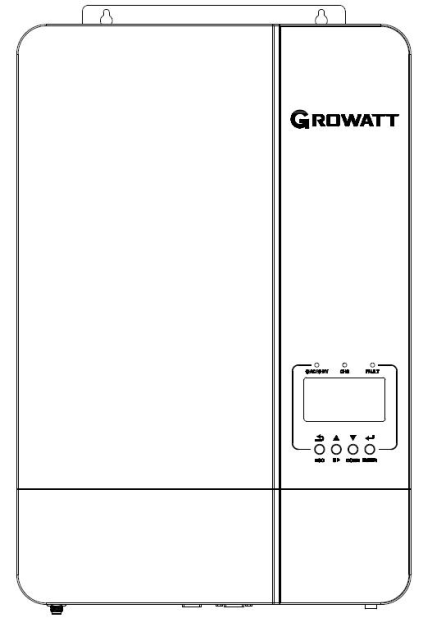

Product Overview
 |
  |

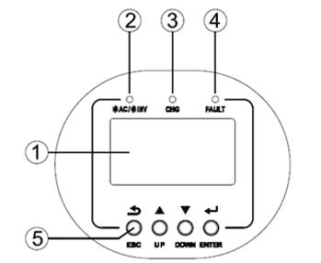

| 1. LCD display | 2. Status indicator |
| 3. Charging indicator | 4. Fault indicator |
| 5. Function buttons | 6. AC input |
| 7. WiFi/GPRS communication port | 8. USB communication port |
| 9. BMS communication port(support CAN/RS485 protocol) | 10. RS485 communication port (for expansion) |
| 11. Dry contact | 12. PV input |
| 13. Power on/off switch | 14. Battery input |
| 15. Parallel communication ports | 16. Current sharing ports |
| 17.AC output | 18. Circuit breaker |
FAQ
1. What's the delivery time?
It depends on what product you order first. If you order solar panels, inverters, or other items we have stock, we can arrange shipping in 3 workdays;
If you order customized products such as batteries, solar system and etc, it takes around 10~15 workdays. We will arrange shipping as soon as possible.
2. Can l mix different models in one container?
Yes, different models can be mixed in one container. But the quantity of each model should not be less than MOQ. And if you purchase a single model in one container there will be more discount.
