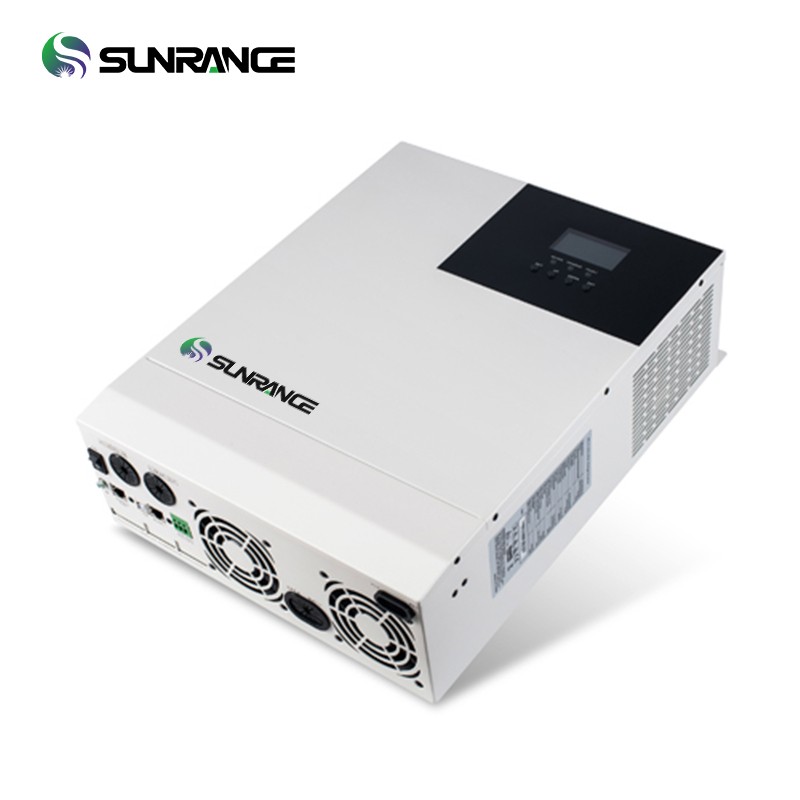

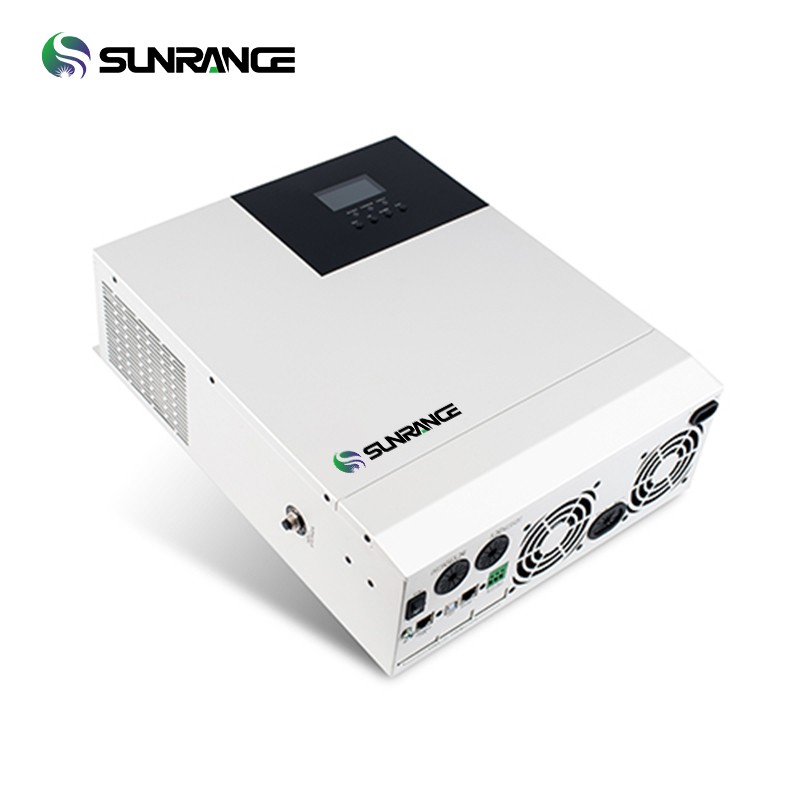

Sunrange 5.5kw off grid inverter is a new type of mixed solar energy storage inverting & control all-in-one machine integratingsolar energy storage & municipal power charge storage and AC sine wave output.
| Model No. : | HF4850S80-H |
| Max.Power: | 3KW-5KW |
| Output Voltage: | 230V Single Phase 50Hz |
| Battery Voltage: | 48Vdc |
| Input Voltage: | 120-430 |
| Dimension(mm): | 426×322×126 |
| Weght(kg): | 10.9 |
performance Parameter
| MODEL | HSI 5500 |
| INVERTER | |
| Rated Output Power | 5,500W |
| Max.Peak Power | 11,000VA |
| Rated Outpu Voltage | 230Vac(L/N/PE single phase) |
| Load Capacity of Motors | 4HP |
| Rated AC Frequency | 50Hz/60Hz |
| Waveform | Pure Sine Wave |
| Switch Time | 10ms (typical) |
| BATTERY | |
| Battery Type | Lead-acid/Li-ion/User defined |
| Rated Battery Voltage | 48V |
| Voltage Range | 40～60Vdc |
| Max.MPPT Charging Current | 100A |
| Max.Mains/Generator Charging Current | 60A |
| MaxHybrid Charging Current | 100A |
| PV INPUT | |
| Num.of MPPT Trackers | 1 |
| Max.PV Array Power | 6,000W |
| MaxInput Curent | 22A |
| Max.Voltage of Open Circuit | 500Vdc |
| MPPT Voltage Range | 120-450Vdc |
| UTILITY/GENERATOR INPUT | |
| nput Voltage Range | UPS mode:170～280Vac;APL mode:90～280Vac |
| Frequency Range | 50/60Hz |
| Bypass Overload Current | 40A |
| EFFICIENCY | |
| MPPT Tracking Efficiency | 99.9% |
| Max.Battery Inverter Efficiency | 92% |
| GENERAL | |
| Dimensions | 426*322*126mm(1.40*1.06*0.41ft) |
| Weight | 10.5kg(23.15Ib) |
| Protection Degree | IP20,Indor Only |
| Operating Temperature Range | -10℃~55℃ |
| Noise | ≤60dB |
| Cooling Method | Forced air cooling with adjustable air speed |
| Warranty | 1.5 Years |
| COMMUNICATION | |
| Embedded Interfaces | RS485/USB/Dry contact |
| External Modules(Optional) | Wi-Fi/GPRS |
| CERTIFICATION | |
| Safety | CE(IEC 62109-1)/FCC/SAA/CETL(UL1741 C22.2 NO.107.1) |
| EMC | EN61000 |
| RoHS | Yes |
It adopts DSP control andadvanced control algorithm to achieve characteristics of high response speed, high reliability andhighindustrial standard.
There are four charge modes namely :
Only solar power,
Mains power priority,
Solar powerpriority,
Mains power & solar power;
And two optional output modes, namely inverting and mains power tomeet different application needs. The solar charge module adopts the latest optimized MPPT tracking technology, which can quicklytrackthe maximum power point of the photovoltaic array in any environment to obtain the maximumenergyof thesolar panel in real time with wide voltage range of MPPT.
AC-DC charge module adopts advanced control algorithm to realize full digital double closed-loopcontrol of voltage and current, with high control accuracy and small volume. Battery can be charged andprotectedstably and reliably with wide AC voltage input range, full input/output protection function.
DC-AC inverter module based on full digital intelligent design adopts advanced SPWMtechnology, outputs pure sine wave, converts DC into AC. It is suitable for AC loads such as household appliances, electrictools, industrial device, electronic audiovisual, etc. The product adopts the segment LCD display designtodisplay the operation data and state of the system in real time. The comprehensive electronic protectionfunction ensures that safety and stability of the whole system.
Wire specification and breaker type
For wiring and installation ways,it is required to observe national and local electrical specificationrequirements. Recommended wiring specification and breaker type for photovoltaic array: the output current of thephotovoltaic array is affected by the form, connection way and illumination angle of photovoltaic array, therefore the minimum wire diameterof the photovoltaic array is calculated based on the short circuitcurrentof photovoltaic array. Please refer to the short circuit current value in the specification of photovoltaicarray (the short circuit current keeps unchanged for the photovoltaic arrays in series connection; theshortcircuit current of photovoltaic arrays in parallel connectioni s the sum of short circuit currentof all componentsconnected in parallel); the short circuit current of the array cannot exceed maximumi nput currentof PV.

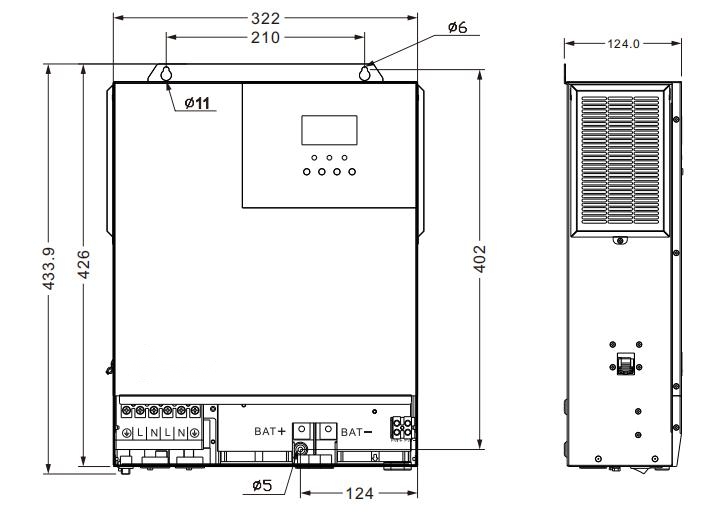

Dimension drawing
FAQ
1.Can I buy one sample for testing?
Sure,we have a 10 years experlence R&D team and In timely after sale service,can help you fix any technical problemor confuslon.
2.How Is the dellvery?
Sample:1-2 workIng days
Order:wlthin 7 working days depending on the order quantltlesOEM order:15-20 working days after confirming the sample
3.How Is your customers servlce?
All solar product will be tested strictly one by one before leaving factory.And the defectlve rate Is below 0.1% we dotry our best to provlde a good customer servlce.
