Approvals TUV Rheinland PV1-F PV Cable, Cables specifically designed for solar photovoltaic modules use irradiated cross-linked low-smoke halogen-free polyolefin insulation and sheathing, making them suitable for applications requiring general protection.
| Product Name | DC Solar PV Cable PV1-F |
| Ambient Temperature | -40℃~+90℃ |
| Certification | TÜV, CE |

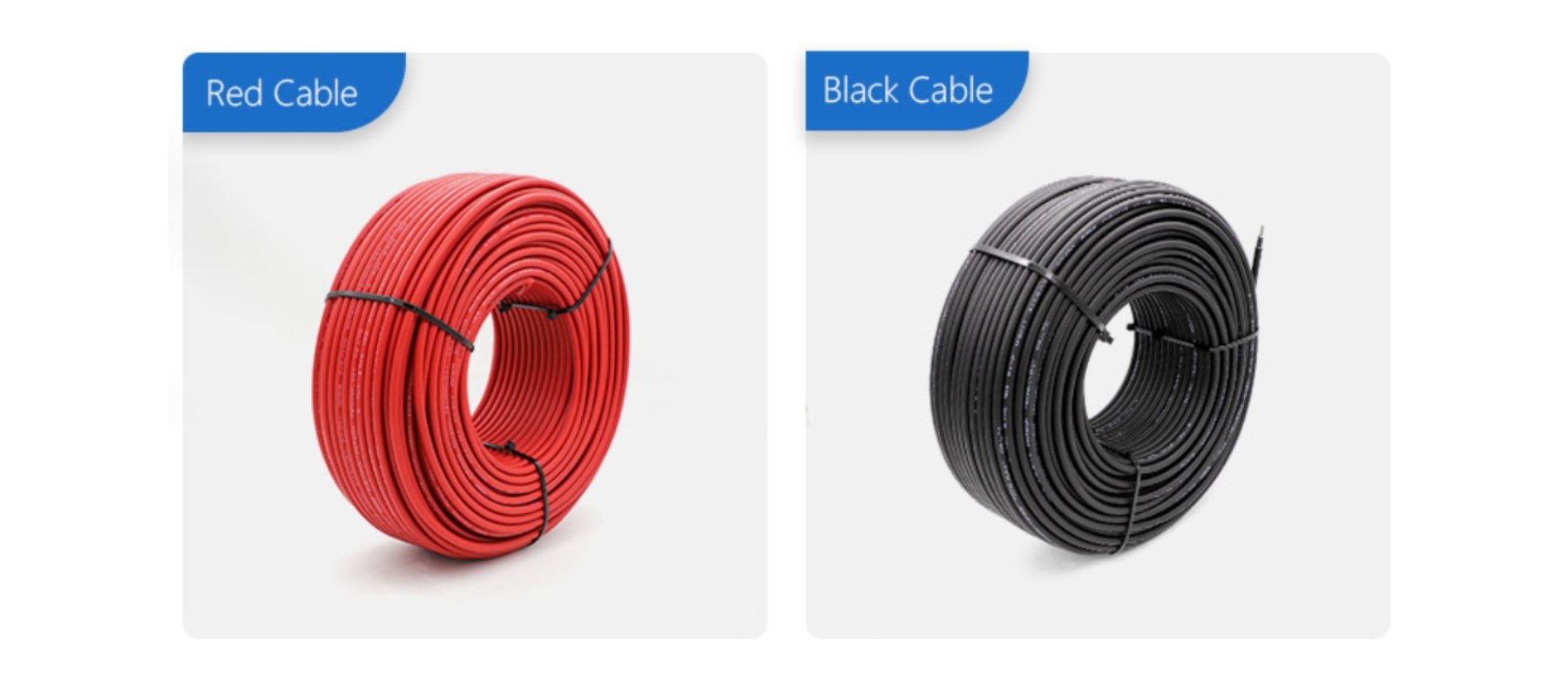

| Color | Black,Red or Customized |
| Specification | 1.5mm²,2.5mm²,4.0mm²,6.0mm²,10.0mm²,16.0mm² 25.0mm²,35.0mm² |
| Number of Cores | Single Core |
| Conductor | Tinned copper |
| Sheath | XLPO |
| Insulation | XLPO |
| Transport Package | Drum or Roll |
| Rated voltage | AC U0/U 0.6/1.0KV,DC1.0KV |
| Voltage test on completed cable | AC6.5KV/5min,DC15KV/5min |
Insulation usingx-linked polyethylene,this is a polymer material made from polyethylene that undergoes a cross-linking reaction,transforming its linear structure into a network. It is widely used in electrical,construction, and piping applications.
Performance Parameter
| Cross section nxmm² | Conductor Ø mm | Outer Ø mm | Current-carrying capacity [A]at 60℃ | Conductor resistance kΩ/km at 20℃ | Weight app.kg/km | Cable Code |
| 1x1.5 | 1.5 | 4.3 | 30 | 13.7 | 30 | PV302515 |
| 1×2.5 | 2.0 | 5.2 | 42 | 8.21 | 42 | PV502525 |
| 1×4.0 | 2.5 | 5.5 | 55 | 5.09 | 55 | PV562940 |
| 1x6.0 | 3.3 | 6.3 | 70 | 3.39 | 68 | PV842960 |
| 1x10.0 | 4.3 | 7.8 | 98 | 1.95 | 98 | PV142301 |
| 1x16.0 | 5.3 | 9.2 | 132 | 1.24 | 132 | PV228301 |
| 1×25.0 | 6.6 | 11.3 | 176 | 0.795 | 176 | PV361302 |
| 1x35.0 | 7.8 | 13.3 | 218 | 0.565 | 218 | PV525303 |
| 1x50.0 | 9.3 | 14.8 | 280 | 0.393 | 280 | PV720305 |
| 1x70.0 | 11.4 | 16.9 | 350 | 0.277 | 350 | PV988307 |
| 1x95.0 | 12.8 | 18.7 | 410 | 0.210 | 410 | PV134930 |
| 1×120.0 | 14.6 | 20.7 | 480 | 0.164 | 480 | PV169130 |
Characteristics of cables

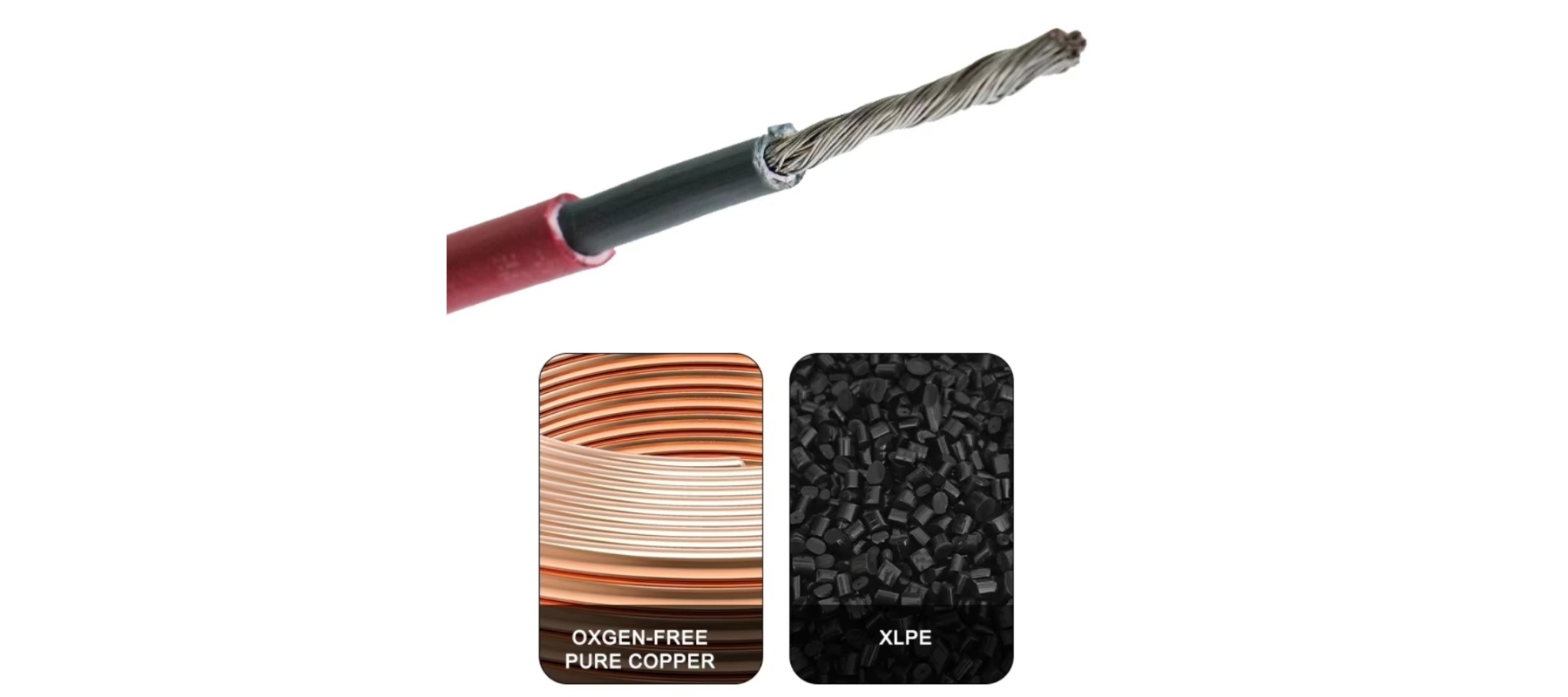

Excellent Material
FAQ
1.Does your pv cable meet the electrical standards of our country?
Yes, our PV cable meets domestic and foreign electrical standards, including international standards and certifications. The products we provide are strictly tested and certified to ensure that they meet customer requirements and national standards.
2.If I have special customization needs, can you provide customized services?
Of course! We can customize production according to the special needs of customers, including customized lengths, special specifications and special materials. Just tell us your needs and we will do our best to meet your customized needs.
3.Regarding prices, do you have preferential policies?
We have always been committed to providing customers with high-quality products and services, while also offering competitive prices. For large-volume purchases, long-term cooperation, etc., we will provide corresponding preferential policies to allow customers to enjoy more benefits.
4.I would like to know your production capacity and delivery cycle. Can you provide relevant information?
A: We have advanced production equipment and technical teams to ensure production capacity and delivery cycle. Generally, we can provide corresponding production plans and guarantee delivery time according to customer needs. If there are special circumstances that require expedited processing, we will also try our best to meet customer needs.
