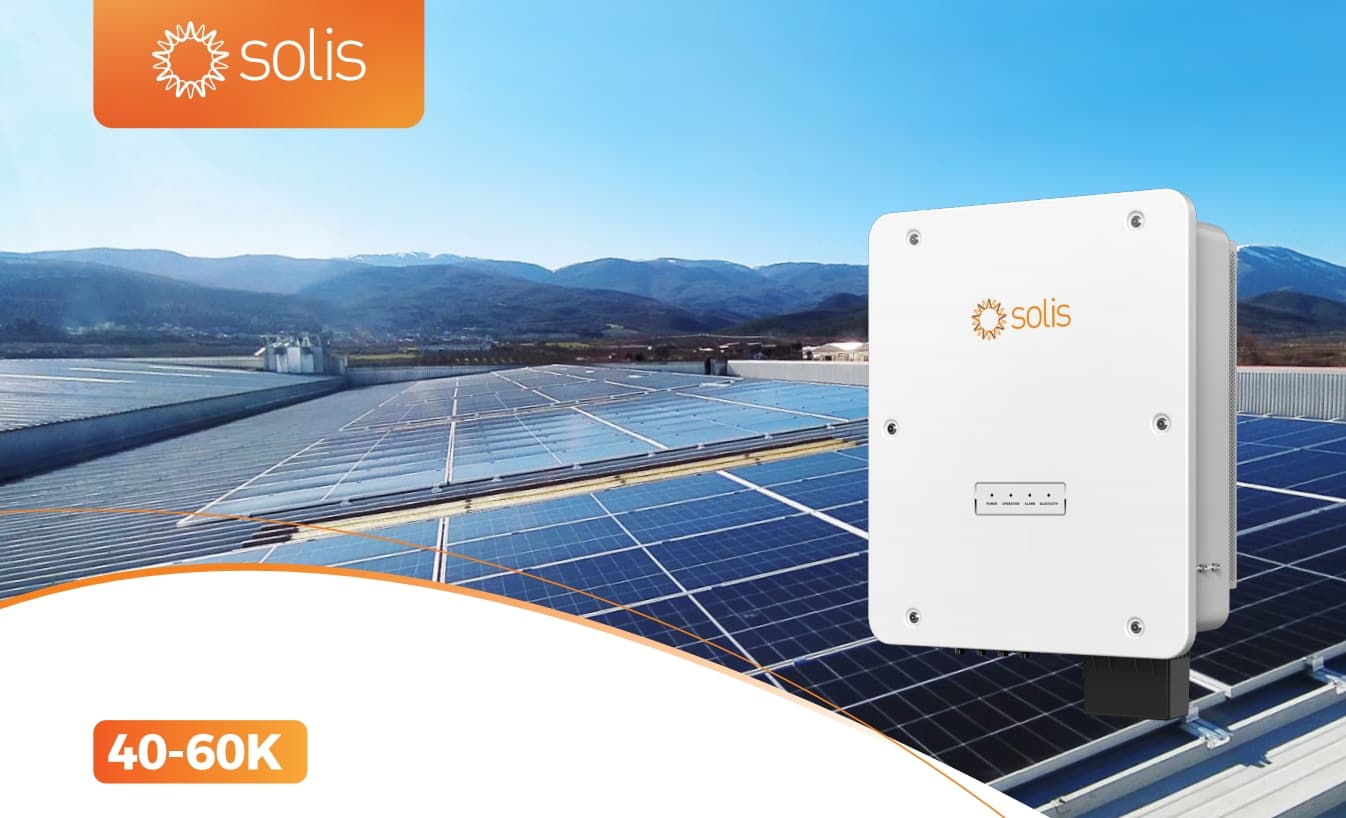

The S6-GC3P(40-60)K-ND three-phase series string inverters are suitable for the installation of three-phase commercial PV plants. They adopt a 4/5 MPPT design to provide a more flexible configuration scheme, and their 98.7% efficiency brings higher yields.
Model： :
S6-GC3P(40-60)K-NDMax.Power: :
40kw/50kw/60kw/50kw/60kwMPPT voltage range: :
180 - 1000 VMPPT number / Max. input strings number: :
4/8; 5/10;Dimensions(mm): :
508 × 612 × 288 mmWeight(kg): :
34.9 kg/35.8 kg/38.6 kg/34.4 kg/37.4 kgWarranty: :
5 Years(10 Years Optional)
Three Phase Grid-Tied Inverter Leading Features
*> 150% DC/AC ratio *String current up to 21A
*4/5 MPPT, max. efficiency 98.7% *Nighttime PID recovery function (optional)
*AFCI protection, proactively reduces fire risk *Intelligent string monitoring, smart I-V curve scan
*Dual independent RS485 ports, supporting communication with multiple devices
Performance Parameter
| Models | 40K04-NV | 50K04-NV | 60K05-NV | 50K04-HV | 60K05-HV | |
| Input DC | ||||||
| Max.input voltage | 1100V | |||||
| Rated voltage | 600V | 720V | ||||
| Start-up voltage | 180V | |||||
| MPPT voltage range | 180-1000V | |||||
| Max input current | 4×42A | 5×42A | 4×42A | 5×42A | ||
| Max.short circuit current | 4 × 52.5 A | 5×52.5A | 4×52.5A | 5×52.5A | ||
| MPPT number/Max iput strings number | 4/8 | 5/10 | 4/8 | 5/10 | ||
| Output AC | ||||||
| Rated output power | 40kW | 50 kW | 60 kW | 50kw | 60 kW | |
| Max.apparent output power | 40KVA | 50 KVA | 60KVA | 50 KVA | 60KVA | |
| Max.output power | 40kW | 50 kW | 60 kW | 50kw | 60kW | |
| Rated grid voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V | 3/PE,480V | ||||
| Rated grid frequency | 50 Hz/60Hz | |||||
| Rated gnid output current | 60.8A/57.7A | 76.0A/72.2A | 91.2A/86.6A | 60.1A | 72.2A | |
| Max.output current | 60.8A/57.7A | 76.0A/72.2A | 91.2A/86.6A | 60.1A | 72.2A | |
| Power factor | > 0.99 (0.8 leading - 0.8 lagging) | |||||
| THDi | <3% | |||||
| Efficiency | ||||||
| Max.eficency | 98.6% | 98.7% | ||||
| EU efficiency | 98.1% | |||||
| Protection | ||||||
| DC reverse-polarity protection | Yes | |||||
| Short circuit protection | Yes | |||||
| Output over current protection | Yes | |||||
| Surge protection | DC Type ll/AC Type ll | |||||
| Grid monitoring | Yes | |||||
| Anti-islanding protection | Yes | |||||
| Temperature protection | Yes | |||||
| Strings monitoring | Yes | |||||
| I/V Curve scanning | Yes | |||||
| Multi peak scan | Yes | |||||
| Integrated AFCI 2.0 | Opional | |||||
| Integrated PID recovery | Opional | |||||
| Integrated DC switch | Yes | |||||
| General Data | ||||||
| Dimensions (W×H×D) | 508×612×288 mm | |||||
| Weight | 34.9kg | 35.8kg | 38.6kg | 34.4 kg | 37.4 kg | |
| Topology | Transfomerless | |||||
| Self-consumption (night) | <1W | |||||
| Operating ambient temperature range | -25~+60°℃ | |||||
| Relative humidity | 0-100% | |||||
| Ingress protection | IP66 | |||||
| Noise emission (typical) | ≤55 dB(A) | |||||
| Cooling concept | Intelligent fan-cooling | |||||
| Max.operation altitude | 4000m | |||||
| Grid connection standard | G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/ UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530 |
|||||
| Safety/EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 | |||||
| Features | ||||||
| DC connection | MC4 connector | |||||
| AC connection | OT terminal | |||||
| Display | LED indicator & Bluetooth+APP | |||||
| Communication | RS485,Optional:Wi-Fi,GPRS | |||||
