Lithium-ion is a low maintenance battery, which are commonly used for energy storage system off-grid and hybrid battery system.
Brand :
Sunrange/OEMWarranty :
10 YearsNominal Battery Energy :
5.12 KWHNominal Voltage :
51.2VBattery Capacity :
100AhCalendar Life :
＞6000 Cycles,25°CCertification & Safety Standard :
CE; MSDS;UN38.3

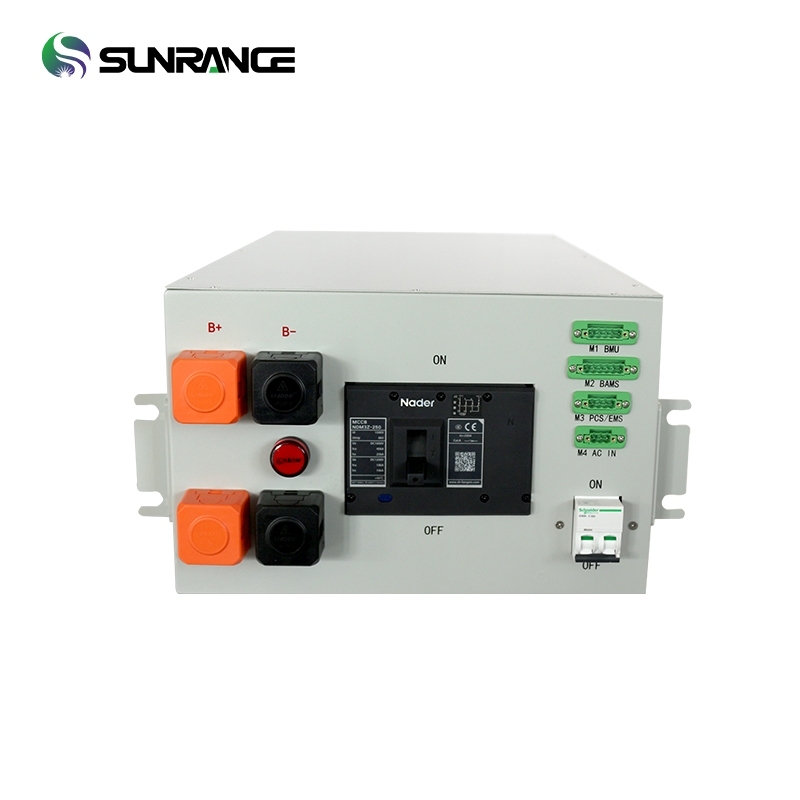

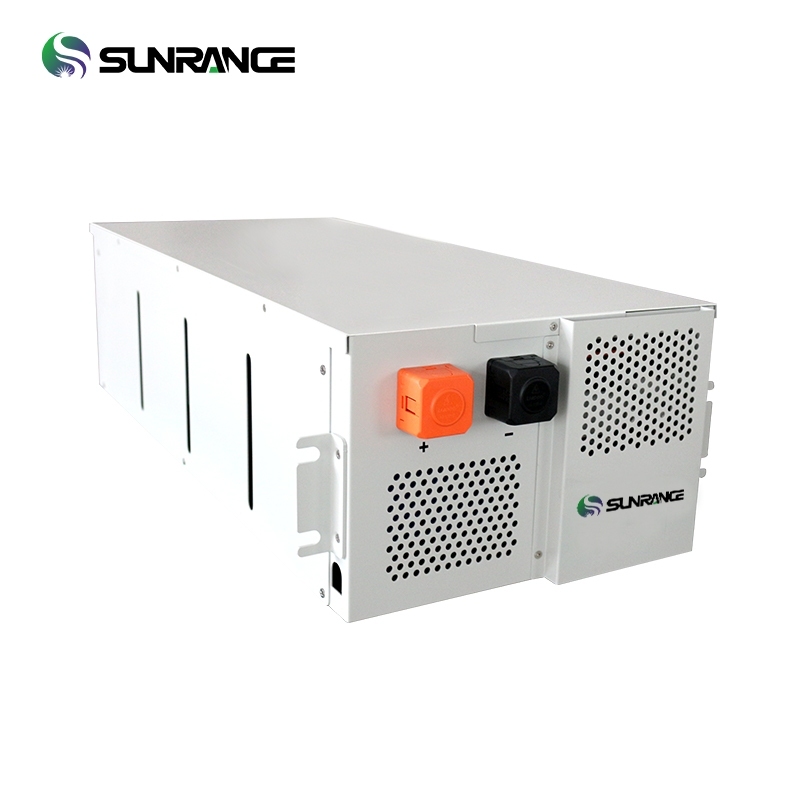

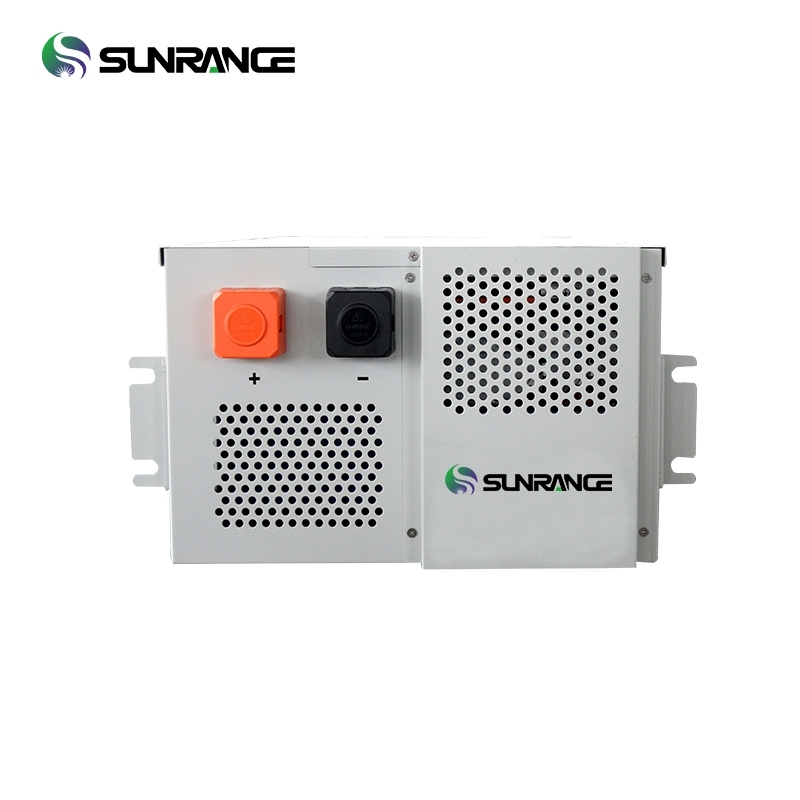

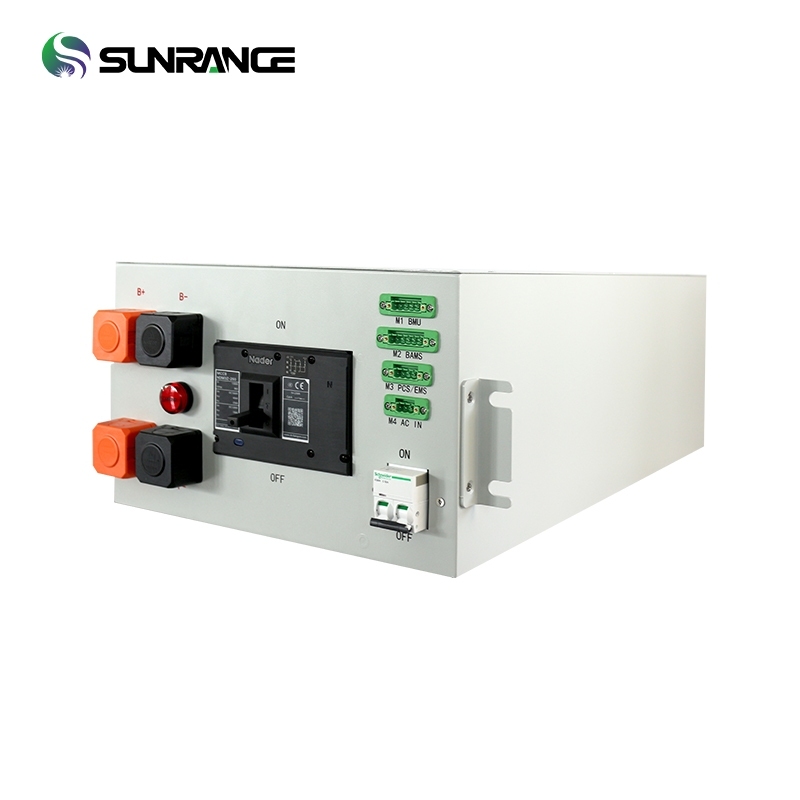

The SR51.2V100AH-H ithium-ion system ofers reliable backup power for commercial industrial use,enabling loadbalancing, peak shaving and renewable energy stabilty. With high integraion, long ife, and wide temp range.is modular 5.12Wh modules (15-seres max) scale capacity from 15.36 to 76.8kWh for flexible storage.
| Module | SR51.2V100AH-H |
| Basic Parameters | |
| Capacity(kWh) | 5.12 |
| Nominal Voltage(Vdc) | 51.2 |
| Nominal Capacity(AH) | 100 |
| Voltage Range(Vdc) | 44.8~57.6 |
| Depth of Discharge | 80% |
| Dimension(W*D*H,mm) | 440*442*179 |
| Design Life | 15+years(25℃) |
| Cycle Life | >6000(25℃) |
| Communication | CANBUSModbus RTU/TCP/IP |
| Protection Class | IP20 |
| Weight(kg) | 48 |
| Operation Temperature | 0~50℃ |
| Storage Temperature | -20~60℃ |
| Product Certificate | MSDS&UN38.3 |
| Battery Type : | Lithium Iron Phosphate | ||||||||||||
| Module energy: | 5.12KWH | ||||||||||||
| Module Normal Voltage: | 51.2V | ||||||||||||
| Module Capacity: | 100AH | ||||||||||||
| Battery Module Qty In Series (Optional): | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| System Normal Voltage: (V) | 153.6 | 204.8 | 256 | 307.2 | 358.4 | 409.6 | 460.8 | 512 | 563.2 | 614.4 | 665.6 | 716.8 | 768 |
| System normal capacity: (AH) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| System Capacity: (KWH) | 15.36 | 20.48 | 25.6 | 30.72 | 35.84 | 40.96 | 46.08 | 51.2 | 56.32 | 61.44 | 66.56 | 71.68 | 76.8 |
Packaging & Shipping
Compatible Inverters List
Project Case
FAQ
1. Comprehensive One-Stop Energy Storage Solution
We provide professional, all-in-one commercial & industrial energy storage system (ESS) solutions.
2. Customizable System Design (5KW–10MW)
Tailored solutions from 5KW to 10MW/more to meet diverse project needs.
3. Higher Real Power Output than Industry Standard
Our 100KW ESS system delivers up to 125KW real output while being rated at 100KW — ensuring more efficient and stable operation.
4. Advanced LFP Battery Technology (LiFePO₄)
Using high-density LFP cells (≥160Wh/kg), our systems are compact, lightweight, and space-saving. Safe and reliable, with over 6,000 cycles at 80% DOD and a lifespan of more than 10 years.
5. Ideal for a Wide Range of Applications
Designed for hotels, schools, factories, churches, broadcasting stations, and large villas.
6. Professional Installation & Commissioning Team
Backed by a team of experienced engineers for on-site installation, debugging, and technical support.
Sunrange’s 25.6V 200AH high-voltage lithium battery is engineered for residential and small commercial solar energy storage systems. Packed with high-density LiFePO₄ cells, it boasts over 6,000 deep cycles and built-in intelligent BMS for full protection against overcharge, over-discharge and short circuits. Compact, maintenance-free and inverter-compatible, it ensures stable power supply. We offer 10-year warranty and prompt delivery.
