Lithium-ion is a low maintenance battery, which are commonly used for energy storage system off-grid and hybrid battery system.
Brand :
Sunrange/OEMWarranty :
10 yearsNominal Battery Energy :
16.0768 KWHNominal Voltage :
51.2VBattery Capacity :
314AhCalendar Life :
＞6000 Cycles,25°CCertification & Safety Standard :
CE; MSDS; UN38.3

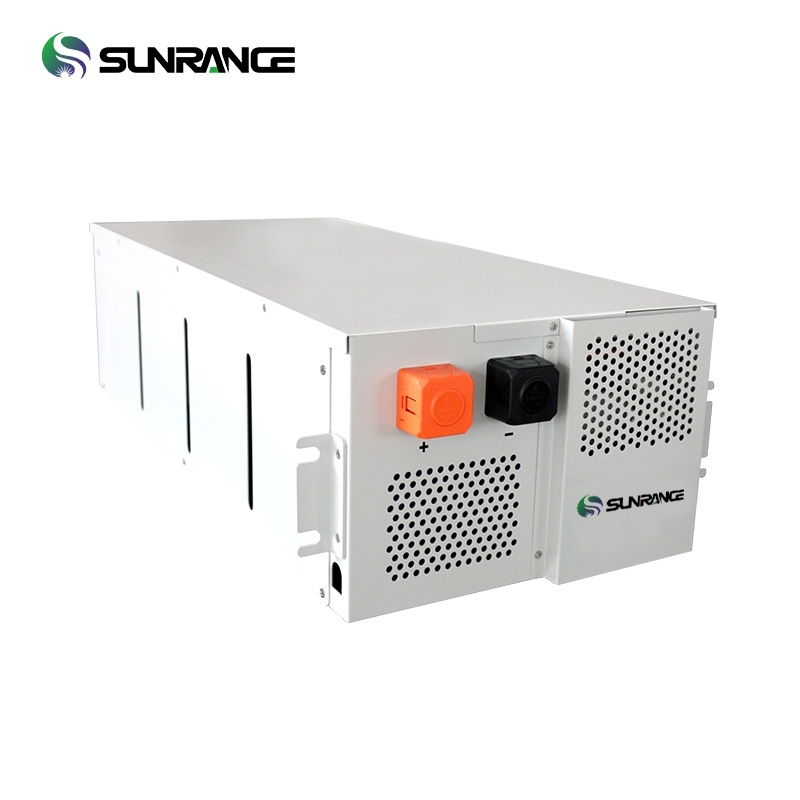

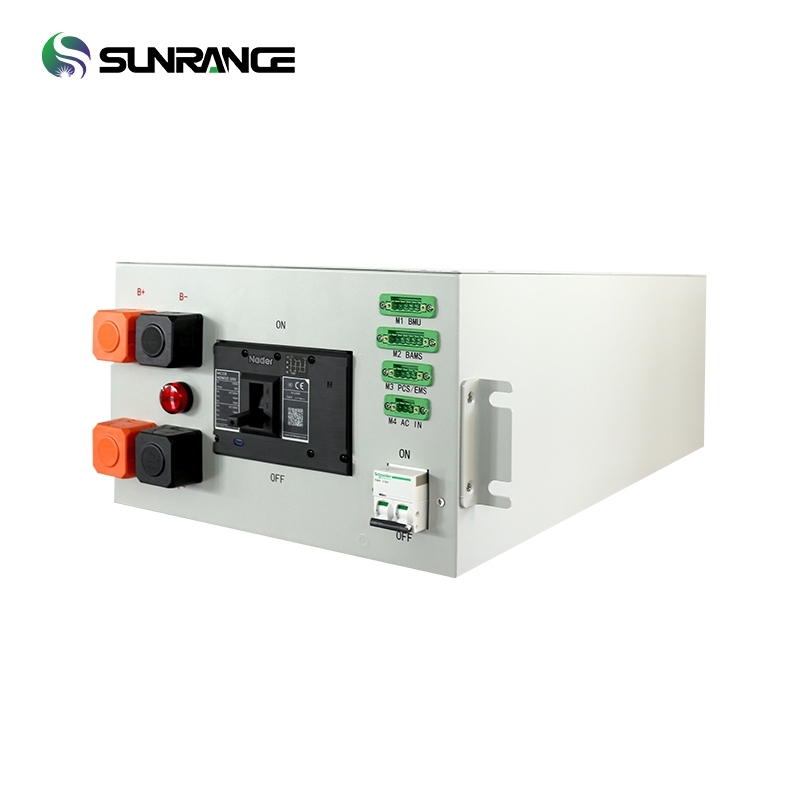

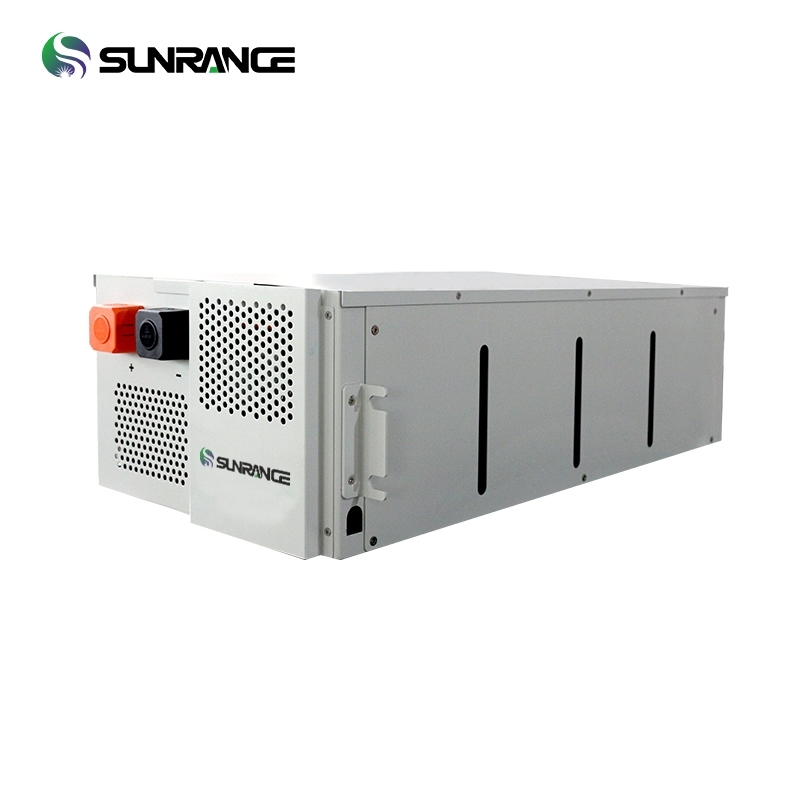

The SR51.2V314AH-H lithium ion system ofers reliable backup power for commercial industrial use,enabling load balancing, peak shaving.and renewable energy stability, With high integraion, long life, and wide temp range.its modular 16.076Wh modules (15-series max) scalecapacity from 48.23 to 241.15kWh for flexible storage.
Performance Parameter
| Module | SR51.2V314AH-H |
| Basic Parameters | |
| Capacity(kWh) | 5.12 |
| Nominal Voltage(Vdc) | 51.2 |
| Nominal Capacity(AH) | 314 |
| Voltage Range(Vdc) | 44.8~56.8 |
| Depth of Discharge | 80% |
| Dimension(W*D*H,mm) | 885*434*238.2(±5) |
| Design Life | 15+years(25℃) |
| Cycle Life | >6000(25℃) |
| Communication | CANBUSModbus RTU/TCP/IP |
| Protection Class | IP20 |
| Weight(kg) | 110kg±3kg |
| Operation Temperature | 0~50℃ |
| Storage Temperature | -20~60℃ |
| Product Certificate | MSDS&UN38.3 |
| Battery Type : | Lithium Iron Phosphate | ||||||||||||
| Module energy: | 16.0768KWH | ||||||||||||
| Module Normal Voltage: | 51.2V | ||||||||||||
| Module Capacity: | 280AH | ||||||||||||
| Battery Module Qty In Series (Optional): | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| System Normal Voltage:(V) | 153.6 | 204.8 | 256 | 307.2 | 358.4 | 409.6 | 460.8 | 512 | 563.2 | 614.4 | 665.6 | 716.8 | 768 |
| System normal capacity:(AH) | 314 | 314 | 314 | 314 | 314 | 314 | 314 | 314 | 314 | 314 | 314 | 314 | 314 |
| System Capacity:(KWH) | 48.23 | 64.3 | 80.38 | 96.46 | 112.53 | 144.69 | 144.69 | 160.76 | 176.84 | 192.92 | 208.99 | 225.07 | 241.15 |
Packaging & Shipping
Compatible Inverters List

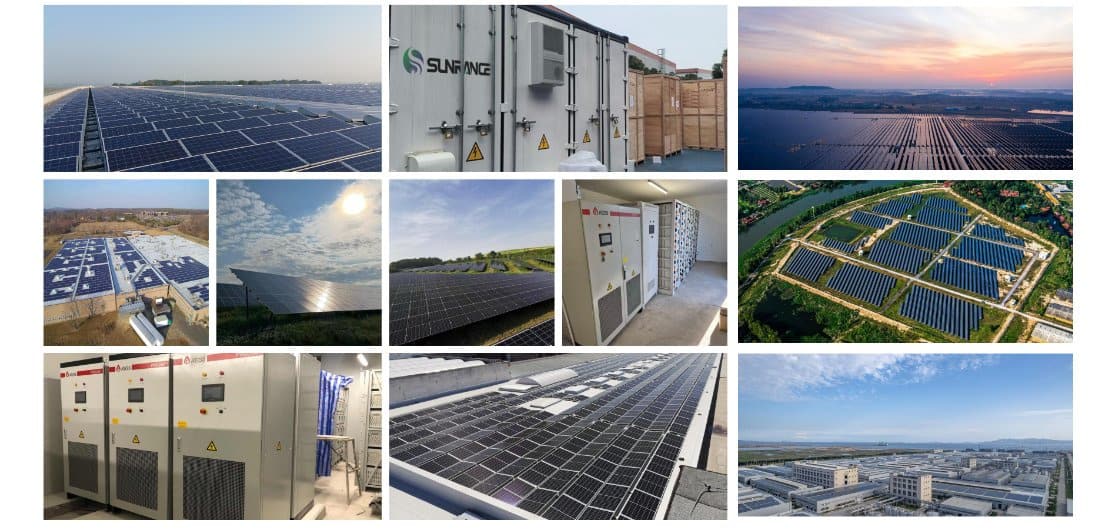

Project Case
FAQ
1. Comprehensive One-Stop Energy Storage Solution
We provide professional, all-in-one commercial & industrial energy storage system (ESS) solutions.
2. Customizable System Design (5KW–10MW)
Tailored solutions from 5KW to 10MW/more to meet diverse project needs.
3. Higher Real Power Output than Industry Standard
Our 100KW ESS system delivers up to 125KW real output while being rated at 100KW — ensuring more efficient and stable operation.
4. Advanced LFP Battery Technology (LiFePO₄)
Using high-density LFP cells (≥160Wh/kg), our systems are compact, lightweight, and space-saving. Safe and reliable, with over 6,000 cycles at 80% DOD and a lifespan of more than 10 years.
5. Ideal for a Wide Range of Applications
Designed for hotels, schools, factories, churches, broadcasting stations, and large villas.
6. Professional Installation & Commissioning Team
Backed by a team of experienced engineers for on-site installation, debugging, and technical support.
Sunrange’s 25.6V 200AH high-voltage lithium battery is engineered for residential and small commercial solar energy storage systems. Packed with high-density LiFePO₄ cells, it boasts over 6,000 deep cycles and built-in intelligent BMS for full protection against overcharge, over-discharge and short circuits. Compact, maintenance-free and inverter-compatible, it ensures stable power supply. We offer 10-year warranty and prompt delivery.
