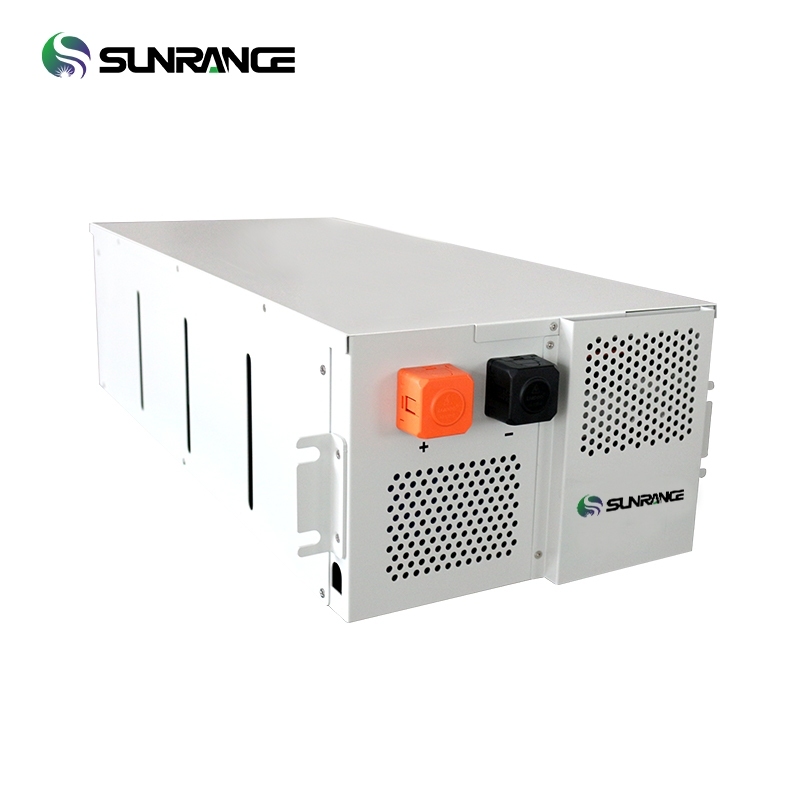

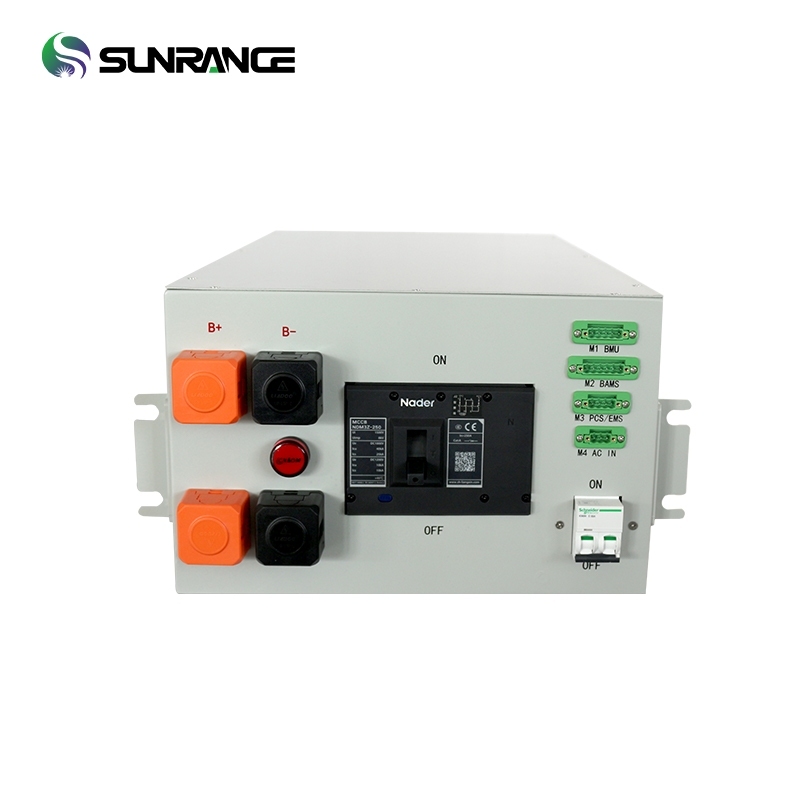

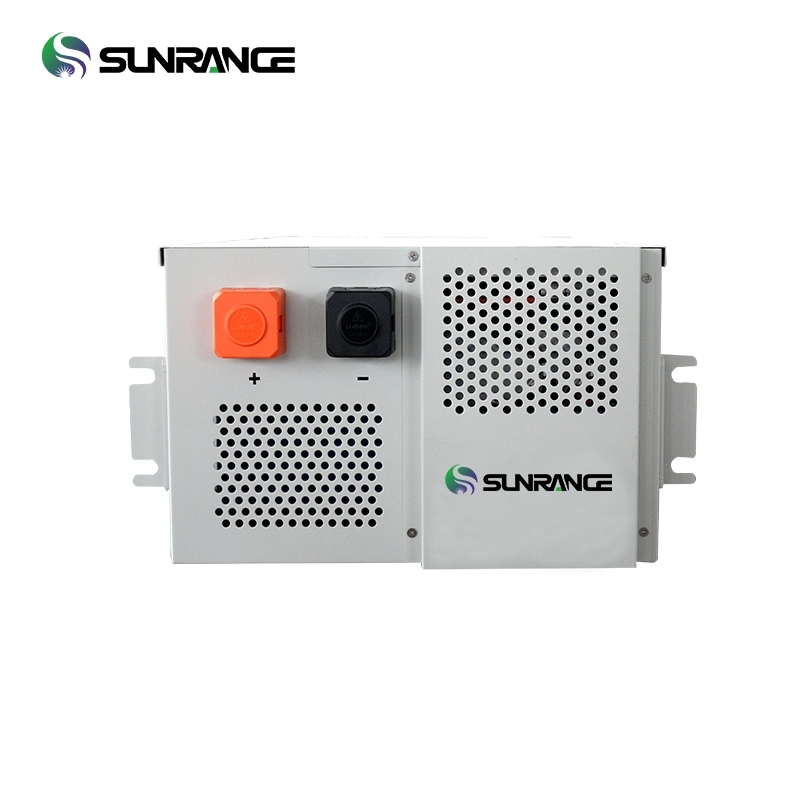

Sunrange’s 25.6V 200AH high-voltage lithium battery is engineered for residential and small commercial solar energy storage systems. Packed with high-density LiFePO₄ cells, it boasts over 6,000 deep cycles and built-in intelligent BMS for full protection against overcharge, over-discharge and short circuits. Compact, maintenance-free and inverter-compatible, it ensures stable power supply. We offer 10-year warranty and prompt delivery.
Brand :
Sunrange/OEMWarranty :
10 YearsNominal Battery Energy :
5.12 KWHNominal Voltage :
25.6VBattery Capacity :
200AhCalendar Life :
＞6000 Cycles,25°CCertification & Safety Standard :
CE; MSDS;UN38.3
The SR25.6V200AH -H ithium-ion system offers reliable backup power for commercial/industrial use,enabling load balancing, peak shaving, and renewable energy stabilty, With high integration,long life,and wide temp range is modular 5.12Wh modules (15-series max) scale capacity from 35.84 to 76.8kWh for flexible storage.
Performance Parameter
| Module | SR25.6V200AH-H |
| Basic Parameters | |
| Capacity(kWh) | 5.12 |
| Nominal Voltage(Vdc) | 25.6 |
| Nominal Capacity(AH) | 200 |
| Voltage Range(Vdc) | 21.6~28.8 |
| Depth of Discharge | 80% |
| Dimension(W*D*H,mm) | 440*442*179 |
| Design Life | 15+years(25℃) |
| Cycle Life | >6000(25℃) |
| Communication | CANBUSModbus RTU/TCP/IP |
| Protection Class | IP20 |
| Weight(kg) | 48 |
| Operation Temperature | 0~50℃ |
| Storage Temperature | -20~60℃ |
| Product Certificate |
MSDS&UN38.3 |
| Battery Type : | Lithium Iron Phosphate | ||||||||
| Module energy: | 5.12KWH | ||||||||
| Module Normal Voltage: | 25.6V | ||||||||
| Module Capacity: | 200AH | ||||||||
| Battery Module Qty In Series (Optional): | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| System Normal Voltage: | 179.2V | 204.8V | 230.4V | 256V | 281.6V | 307.2V | 332.8V | 358.4V | 384V |
| System normal capacity: | 200AH | 200AH | 200AH | 200AH | 200AH | 200AH | 200AH | 200AH | 200AH |
| System Capacity: | 35.84KWH | 40.96KWH | 46.08KWH | 51.2KWH | 56.32KWH | 61.44KWH | 66.56KWH | 71.68KWH | 76.8KWH |

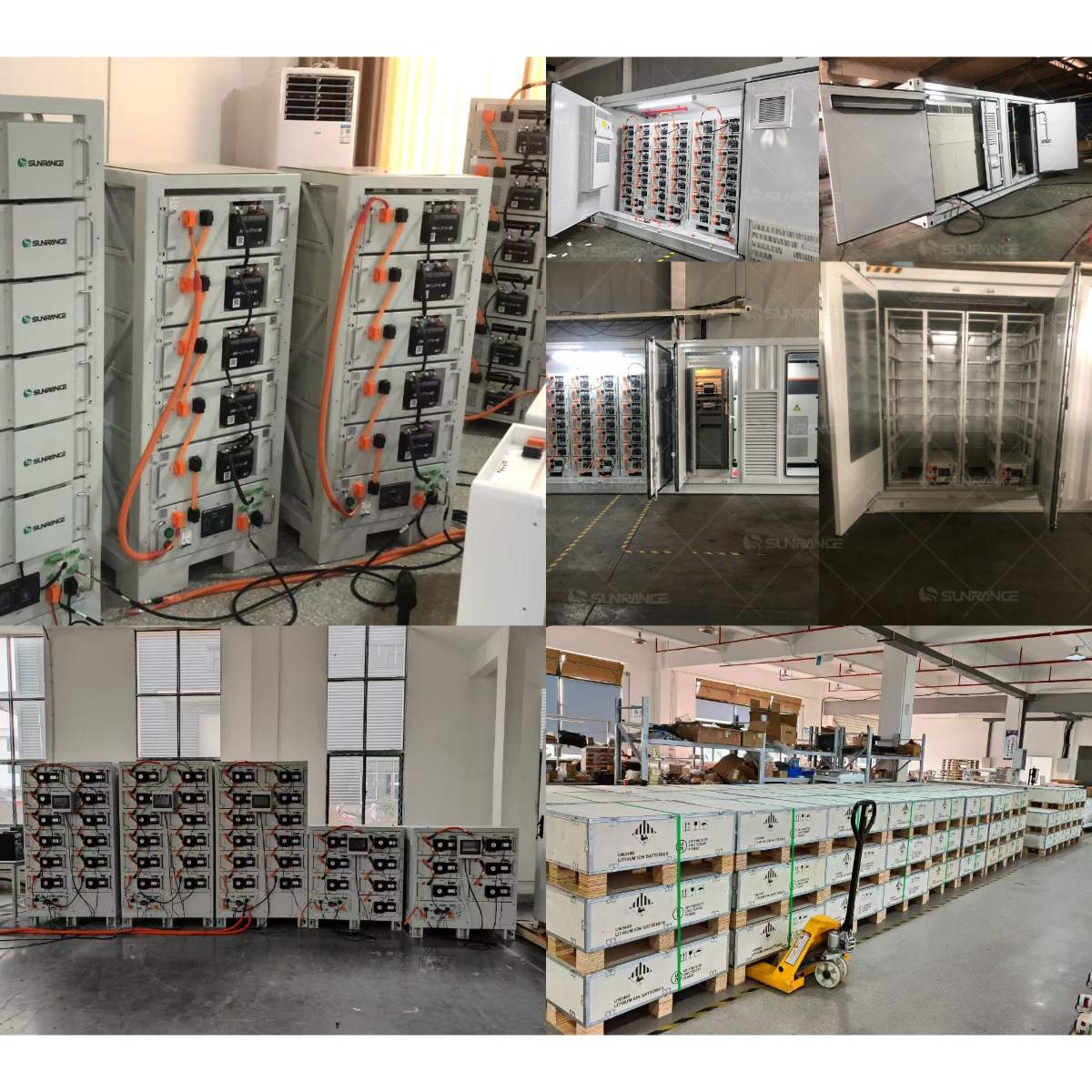

Packaging & Shipping
Compatible Inverters List
Project Case
FAQ
1. Comprehensive One-Stop Energy Storage Solution
We provide professional, all-in-one commercial & industrial energy storage system (ESS) solutions.
2. Customizable System Design (5KW–10MW)
Tailored solutions from 5KW to 10MW/more to meet diverse project needs.
3. Higher Real Power Output than Industry Standard
Our 100KW ESS system delivers up to 125KW real output while being rated at 100KW — ensuring more efficient and stable operation.
4. Advanced LFP Battery Technology (LiFePO₄)
Using high-density LFP cells (≥160Wh/kg), our systems are compact, lightweight, and space-saving. Safe and reliable, with over 6,000 cycles at 80% DOD and a lifespan of more than 10 years.
5. Ideal for a Wide Range of Applications
Designed for hotels, schools, factories, churches, broadcasting stations, and large villas.
6. Professional Installation & Commissioning Team
Backed by a team of experienced engineers for on-site installation, debugging, and technical support.
Sunrange’s 25.6V 200AH high-voltage lithium battery is engineered for residential and small commercial solar energy storage systems. Packed with high-density LiFePO₄ cells, it boasts over 6,000 deep cycles and built-in intelligent BMS for full protection against overcharge, over-discharge and short circuits. Compact, maintenance-free and inverter-compatible, it ensures stable power supply. We offer 10-year warranty and prompt delivery.
