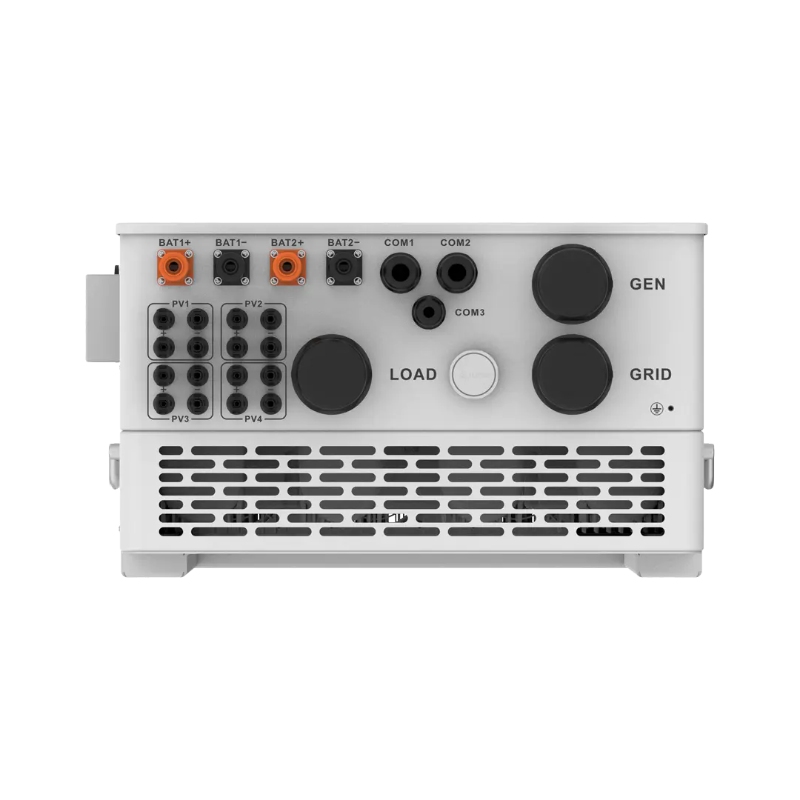

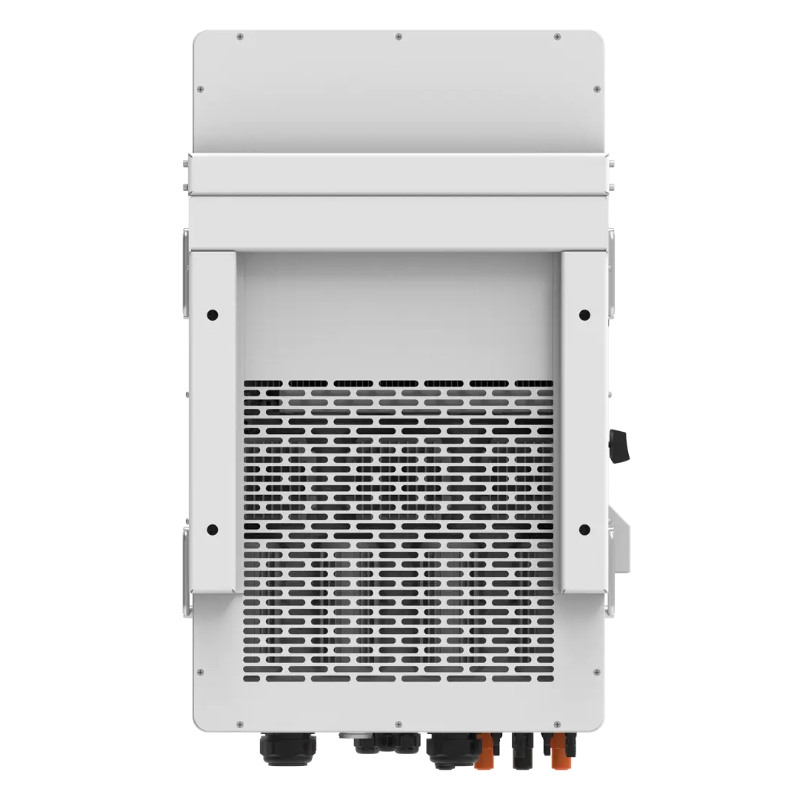

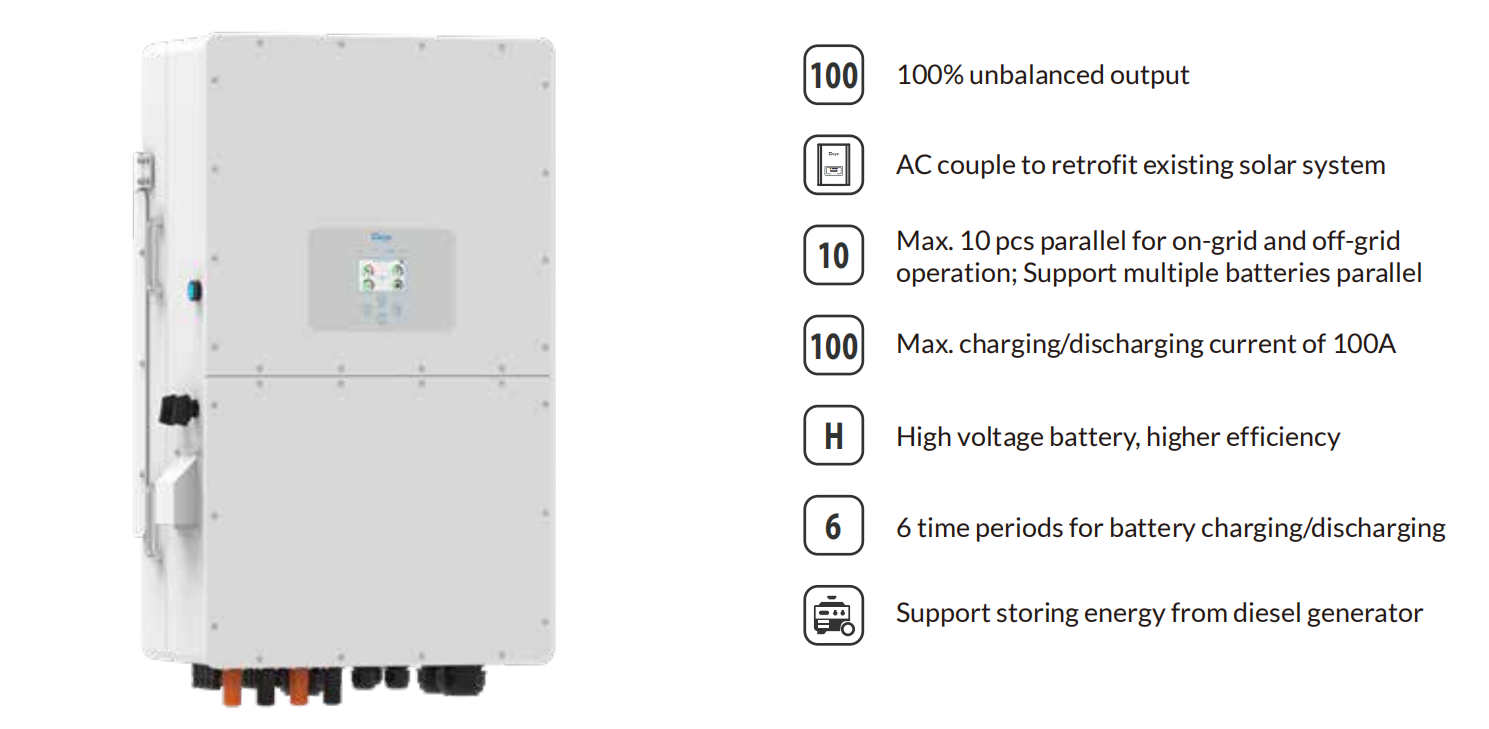

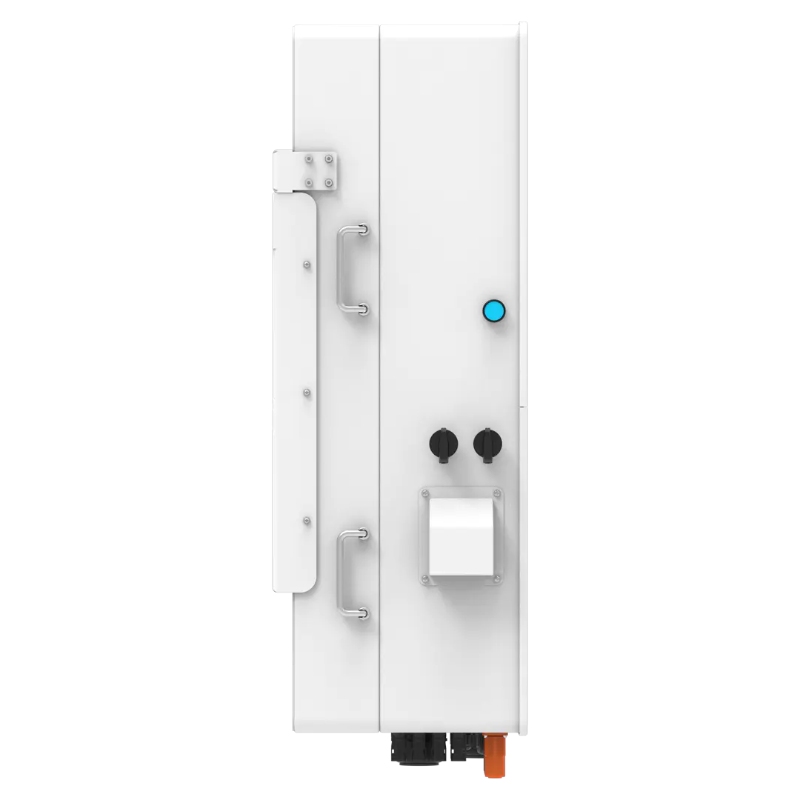

Three Phase Hybrid Inverter | 29.9-50kW | 3/4 MPPT | HV Battery Supported
| Model: | SUN-29.9K-50K-SG01HP3-EU-BM4 |
| Max.Power: | 29.9KW/30KW/35KW/40KW/50KW |
| Output Voltage: | 400V Three Phase 50Hz |
| Input Voltage: | 1000 |
| Battery Voltage: | 160-800Vdc |
| Dimension(mm): | 527*894*294 |
| Weight(kg): | 80 |
| Warranty: | 5 Years(10 Years Optional) |
Performance Parameter
| Model | SUN-29.9K-SG01HP3-EU-BM3 | SUN-30K-SG01HP3-EU-BM3 | SUN-35K-SG01HP3-EU-BM3 | SUN-40K-SG01HP3-EU-BM4 | SUN-50K-SG01HP3-EU-BM4 |
| Battery Input Data | |||||
| Battery Type | Lithium-ion | ||||
| Battery Voltage Range(V) | 160-800 | ||||
| Max.Charging Current(A) | 50+50 | ||||
| Max.Discharging Current(A) | 50+50 | ||||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||
| Number of battery input | 2 | ||||
| PV String Input Data | |||||
| Max.PV Access Power(W) | 59800 | 60000 | 70000 | 80000 | 100000 |
| Max DC Input Power(W) | 47840 | 48000 | 56000 | 64000 | 80000 |
| Max DC Input Voltage(V) | 1000 | ||||
| Start-up Voltage(V) | 180 | ||||
| MPPT Voltage Range(V) | 150-850 | ||||
| Rated DC Input Voltage(V) | 600 | ||||
| Max Input Short-Circuit Current(A) | 55+55+55 | 55+55+55+55 | |||
| Max Operating PV Input Current(A) | 36+36+36 | 36+36+36+36 | |||
| No.of MPP Trackers/No.of String Per MPP Tracker |
3/2+2+2 | 4/2+2+2+2 | |||
| AC Input/Output Data | |||||
| Rated AC Input/Output Active Power (W) |
29900 | 30000 | 35000 | 40000 | 50000 |
| Max AC Input/Output Apparent Power (VA) |
29900 | 33000 | 38500 | 44000 | 55000 |
| Peak Power(off-grid)(W) | 1.5 times of rated power,10s | ||||
| Rated AC Input/Output Current(A) | 45.4/43.4 | 45.5/43.5 | 53.1/50.8 | 60.7/58.0 | 75.8/72.5 |
| Max AC Input/Output Current(A) | 45.4/43.4 | 50/47.9 | 58.4/55.8 | 66.7/63.8 | 83.4/79.8 |
| Max Continuous AC Passthrough (grid to load)(A) |
200 | ||||
| Rated Input/Output Voltage/Range(V) | 220/380V,230/400V 0.85Un-1.1Un | ||||
| Grid Connection Form | 3L+N+PE | ||||
| Rated Input/Output Grid Frequency/Range |
50/45-55,60/55-65 | ||||
| Power Factor Adjustment Range | 0.8 leading-0.8 lagging | ||||
| Total Current Harmonic Distortion THDi | <3%(of nominal power) | ||||
| DC Injection Current | <0.5%ln | ||||
| Efficiency | |||||
| Max Efficiency | 0.976 | ||||
| Euro Efficiency | 0.97 | ||||
| MPPT Efficiency | >99% | ||||
| Equipment Protection | |||||
| Integrated | DC Reverse Polarity Protection,AC Output Overcurrent Protection,Thermal Protection,AC Output Overvoltage Protection,AC Output Short Circuit Protection,DC Component Monitoring,Arc Fault Circuit Interrupter(optional),Anti-islanding Protection,DC Switch,Insulation Impedance Detection, Residual Curent Detection |
||||
| Surge Protection Level | TYPE II(DC),TYPE I(AC) | ||||
| Interface | |||||
| Communication Interface | RS485/RS232/CAN | ||||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||||
| General Data | |||||
| Operating Temperature Range | -40℃+60℃,>45℃ Derating | ||||
| Permissible Ambient Humidity | 0-100% | ||||
| Permissible Altitude | 2000m | ||||
| Noise | ≤65 dB(A) | ||||
| Ingress Protection(IP)Rating | IP65 | ||||
| Inverter Topology | Non-Isolated | ||||
| Over Voltage Category | OVCII(DC),OVCII(AC) | ||||
| Cabinet size(W*H*D)[mm] | 527*894*294(Excluding connectors and brackets) | ||||
| Weight[kg] | 80 | ||||
| Warranty | 5Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter,More Info Please Refer to Warranty Policy |
||||
| Type Of Cooling | Intelligent air cooling | ||||
| Grid Regulation | IEC61727,IEC 62116,CEI 0-21,EN 50549,NRS 097,RD 140,UNE 217002, OVE-Richtlinie R25,G99,VDE-AR-N 4105 |
||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2 | ||||
