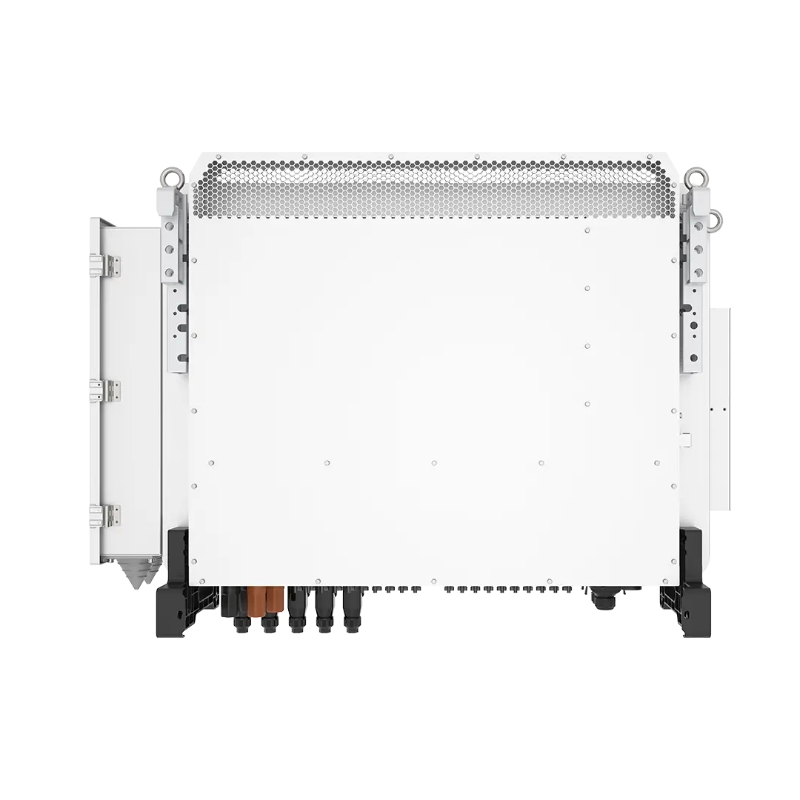

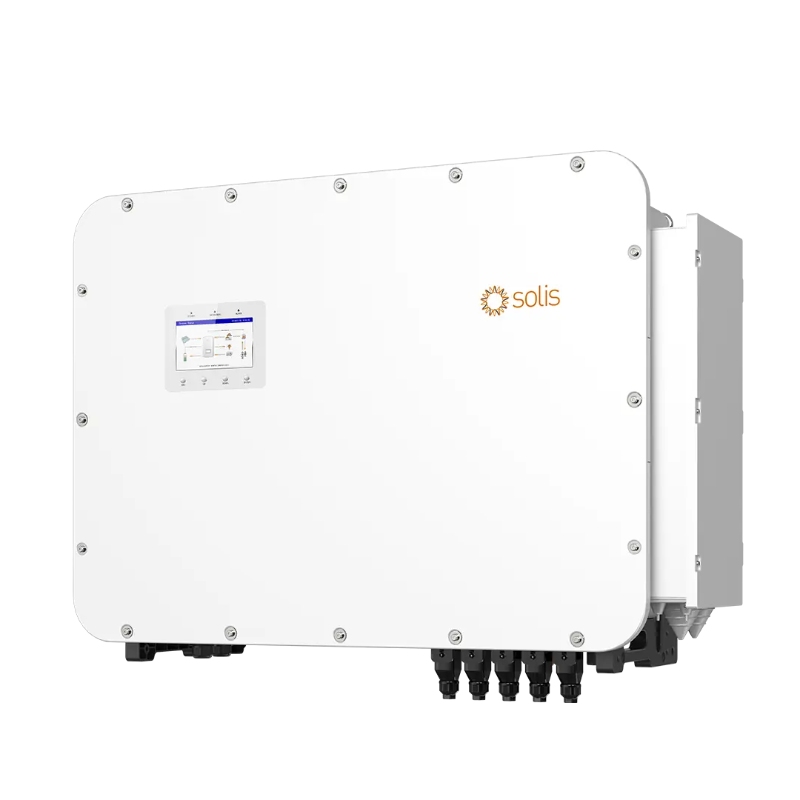

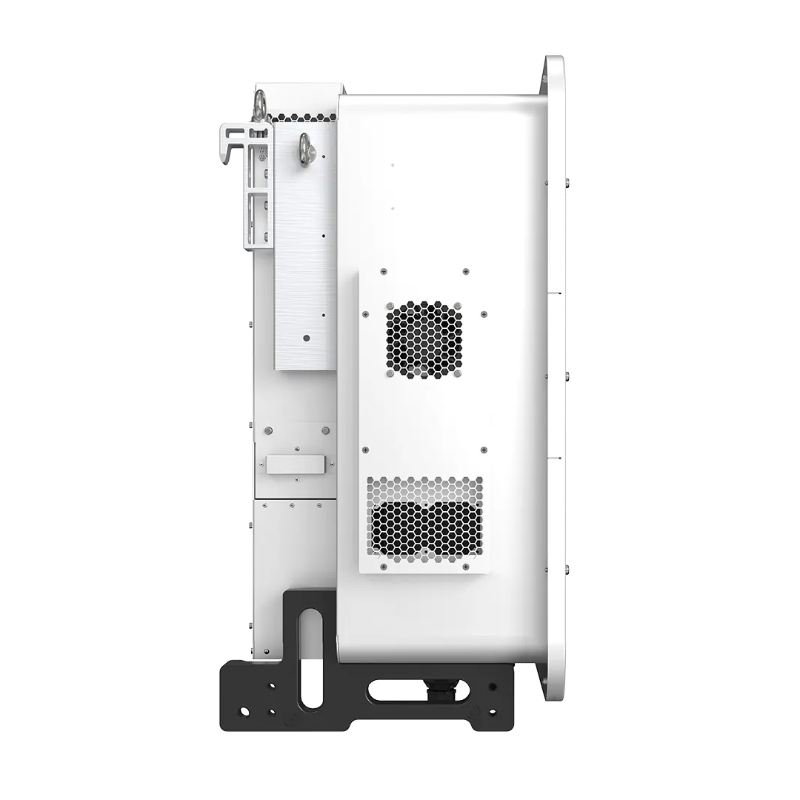

Designed for both on-grid and off-grid applications, the S6-EH3P(75-125)K10-NV-YD-H series supports parallel operation of up to six units. Its dedicated backup port can handle overloads of up to 2.0 times rated power for short durations. Thanks to its wide voltage range, the series is compatible with a broad selection of battery types and supports peak shaving control in both "self-use" and "generator" modes.
Model： :
S6-EH3P(75-125)K10-NV-YD-HMax.Power: :
75 kW/80kW/99.9 kW/100kW/125 kWMPPT voltage range: :
150 - 950 VMPPT number / Max. input strings number: :
10/20Dimensions(mm): :
1174*814*400Weight(kg): :
170Warranty: :
5 Years(10 Years Optional)
Three Phase High Voltage Energy Storage Inverter
Leading Features
*Supports up to 2x rated PV input, maximizing solar energy utilization
*Supports a maximum string input current of 21A, ensuring compatibility with high-power PV modules
*Compatible with 100–314Ah battery modules, reducing overall system costs
*Supports fast battery charging with a maximum charging current of 200A
*Two independent battery ports for flexible configurations and easy capacity expansion
*Supports both DC and AC coupling, for flexible retrofits and system expansions
*Ensures reliable backup power across diverse scenarios through battery reserve management
*Extends supply time for critical loads with intelligent load prioritization
*Offers a versatile three-in-one interface for seamless integration of on-grid PV, wind power, and diesel generators
| Input DC (PV side) | ||||||
| Recommended max. PV array size | 150 kW | 160 kW | 200 kW | 200 kW | 250 kW | |
| Max.usable PV input power | 150 kW | 160 kW | 200 kW | 200 kW | 250 kW | |
| Max.input voltage | 1000 V | |||||
| Rated voltage | 600 V | |||||
| Start-up voltage | 180 V | |||||
| MPPT voltage range | 150-950V | |||||
| Max. input current | 10×42A | |||||
| Max. short circuit current | 10×60A | |||||
| MPPT number / Max. input strings number | 10/20 | |||||
| Battery | ||||||
| Battery type | Li-ion | |||||
| Battery voltage range | 300 - 950 V | |||||
| Max. charge / discharge current | 200 A / 100 A + 100 A | |||||
| Number of battery ports | 2 | |||||
| Max. charge / discharge current of each port | 100 A | |||||
| Communication | CAN / RS485 | |||||
| Output AC(Grid side) | ||||||
| Rated output power | 75kW | 80 kW | 99.9kW | 100 kW | 125kW | |
| Max.apparent output power | 75KVA | 80 KVA | 99.9 KVA | 100 kVA | 125kVA | |
| Rated grid voltage | 3/N/PE,220V/380V,230V/400V | |||||
| Rated grid frequency | 50 Hz/60Hz | |||||
| Rated grid output current | 114 A / 108.3 A | 121.6 A / 115.5 A | 151.8 A / 144.2 A | 151.9 A / 144.3 A | 189.9 A / 180.4 A | |
| Power factor | > 0.99 (0.8 leading - 0.8 lagging) | |||||
| THDi | < 3% | |||||
| InputAC(Grid side) | ||||||
| Max. input current | 250 A | |||||
| Output AC (Back-up) | ||||||
| Rated output power | 75kW | 80 kW | 99.9kW | 100 kW | 125kW | |
| Max. apparent output power | 75-100K: 1.2 times of rated power, 10 mins; 1.4 times of rated power, 100 s; 1.6 times of rated power, 10 s; 2 times of rated power, 200 ms; 125K: 1.2 times of rated power, 100 s; 1.4 times of rated power, 10 s; 1.6 times of rated power, 200 ms |
|||||
| Back-up switch time | >10 ms | |||||
| Rated output voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V | |||||
| Rated frequency | 50HZ/60HZ | |||||
| THDv(@linear load) | >2% | |||||
| Input AC (Generator) | ||||||
| Max. input power | 75kW | 80 kW | 99.9kW | 100KW | 125 kW | |
| Rated input current | 114.0A/108.3A | 121.6A/115.5A | 151.8A/144.2A | 151.9A/144.3A | 189.9A/180.4A | |
| Rated input voltage | 3/N/PE,220V/380V;3/N/PE,230V/400V | |||||
| Rated input frequency | 50Hz/60 Hz | |||||
| Efficiency | ||||||
| Max. efficiency | 97.6% | |||||
| EU efficiency | 97.29% | |||||
| BAT charged / discharged to AC max. efficiency | 97.0% | |||||
| Protection | ||||||
| Anti-islanding protection | Yes | |||||
| Output over current protection | Yes | |||||
| Short circuit protection | Yes | |||||
| Integrated DC switch | Yes | |||||
| DC reverse-polarity protection | Yes | |||||
| Surge protection | DC Type ll/AC Type ll | |||||
| Integrated AFCI 2.0 | Yes | Optional | Optional (Brazil: Yes) | |||
| Protection class / Over voltage category | I/ DC II, AC III | |||||
| General Data | ||||||
| Max allowable phase imbalance (grid & back-up) | 100% | |||||
| Max.power per phase (grid&back-up) | 25.00 kW | 26.66 kW | 33.3 kW | 33.3 kW | 41.66 kW | |
| Dimensions(W×H×D) | 1174 × 814 × 400 mm | |||||
| Weight | 170 kg | |||||
| Topology | Transformerless | |||||
| Operating ambient temperature range | -25~+60°℃ | |||||
| Relative humidity | 0-100% | |||||
| Ingress protection | IP66 | |||||
| Cooling concept | Intelligent fan-cooling | |||||
| Max.operation altitude | 3000m | |||||
| Grid connection standard | G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1&2/EN 50549-10, VDE 0126/UTE C 15/VFR:2019, NTS 631/RD 1699/RD 244/ UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA,PORTARIA Nº 140, DE 21 DE MARÇO DE 2022; Brazil (75K: ORDINANCE (PORTARIA) NO.140, ORDINANCE NO. 515; 100K/125K: NBR 16149, NBR 16150, IEC 62116) |
|||||
| Safety/EMCstandard | IEC/EN 62109-1/-2,IEC/EN61000-6-2/-4,EN55011 | |||||
| Features | ||||||
| PVconnection | MC4 Quick connection plug | |||||
| Battery connection | Terminal connector | |||||
| AC connection | Terminal block | |||||
| Display | 7.0" LCD display & Bluetooth + APP | |||||
| Communication | CAN, RS485-115200, Ethernet, Optional: Wi-Fi, Cellular, LAN | |||||
